ATTENTION

CHOOSE AN X-OVER POLE STYLE FROM THE OPTIONS ABOVE.

STEP 1

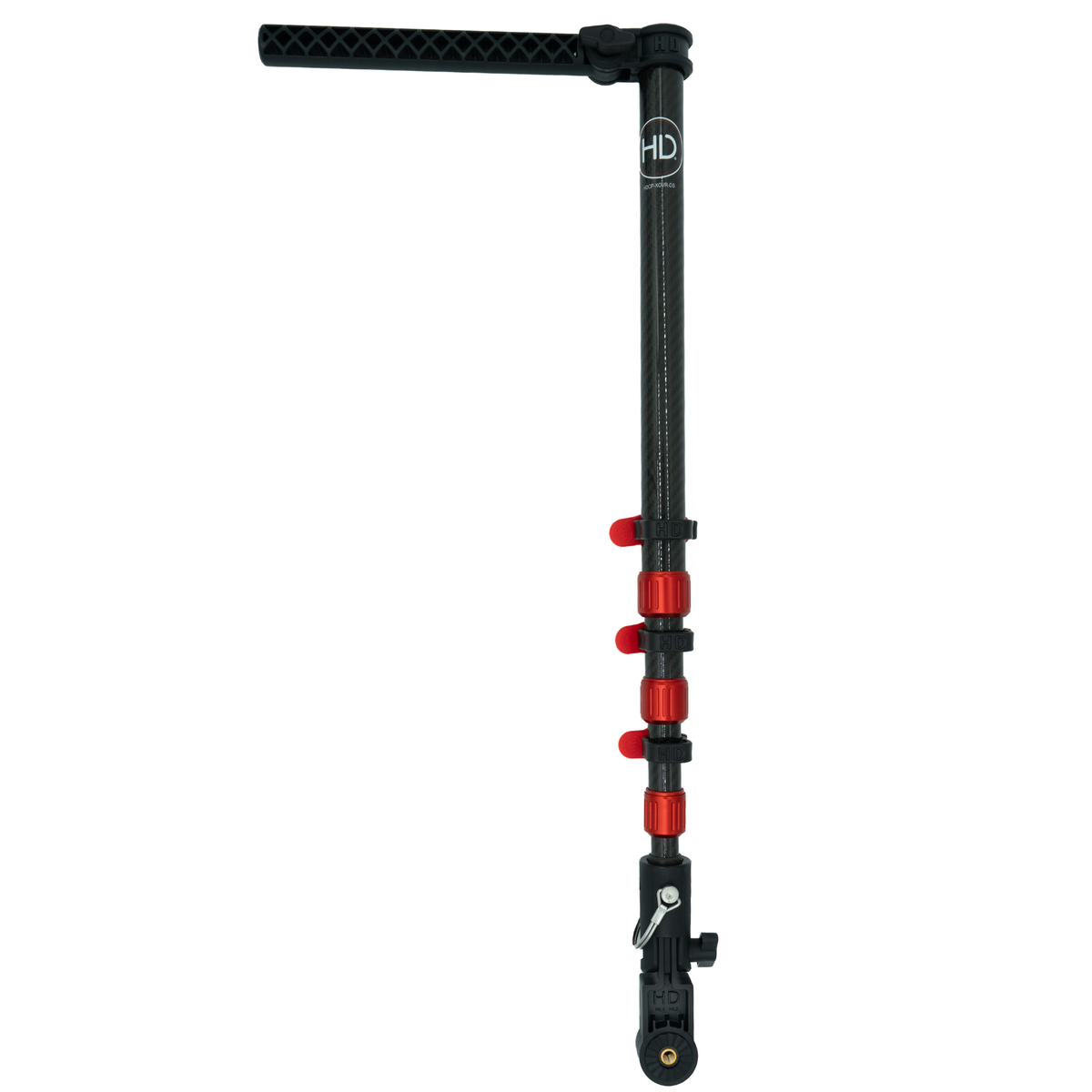

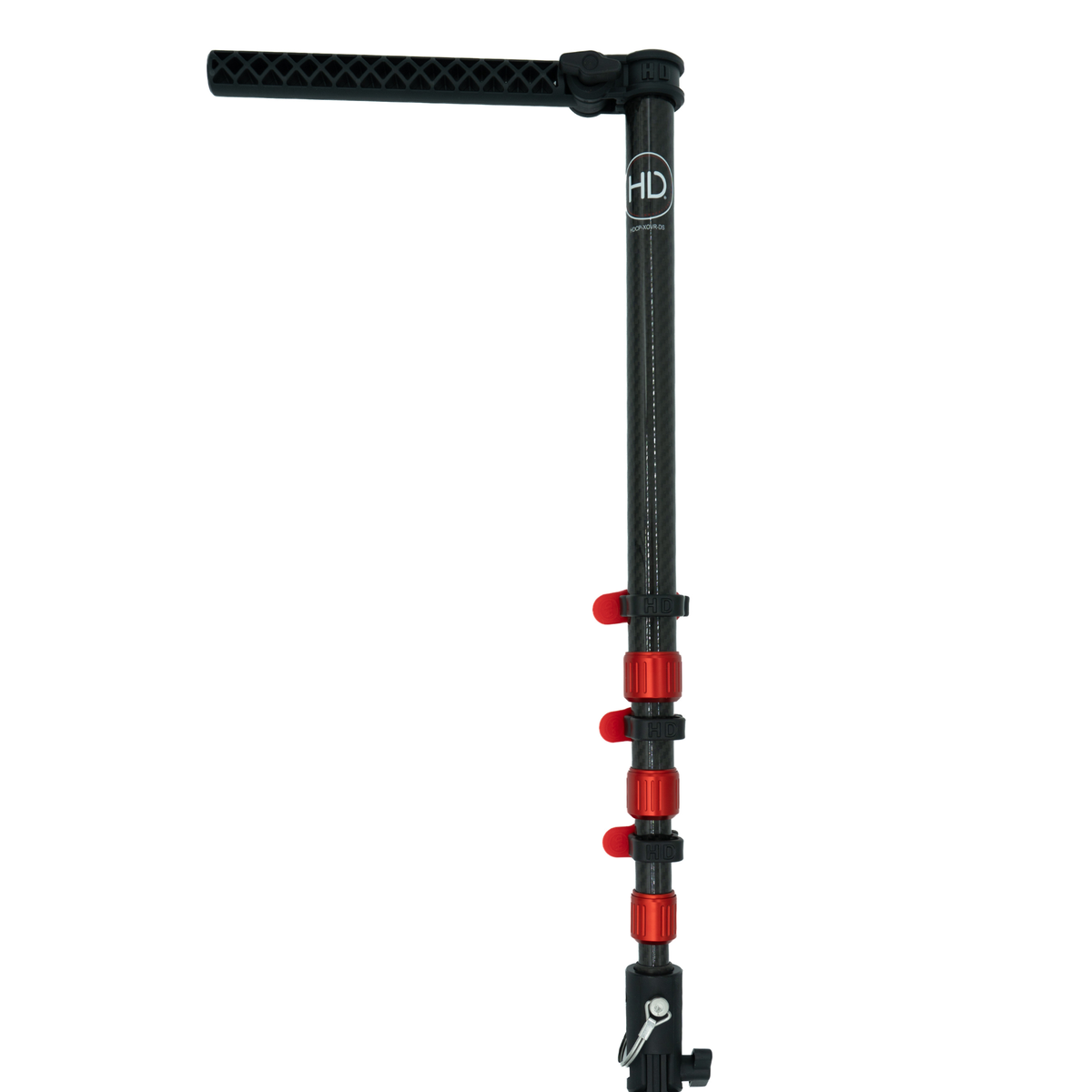

• FOR USE BOAT USE OR "OPEN WATER", CHOOSE "OPEN WATER" (NO ICE TRIPOD)

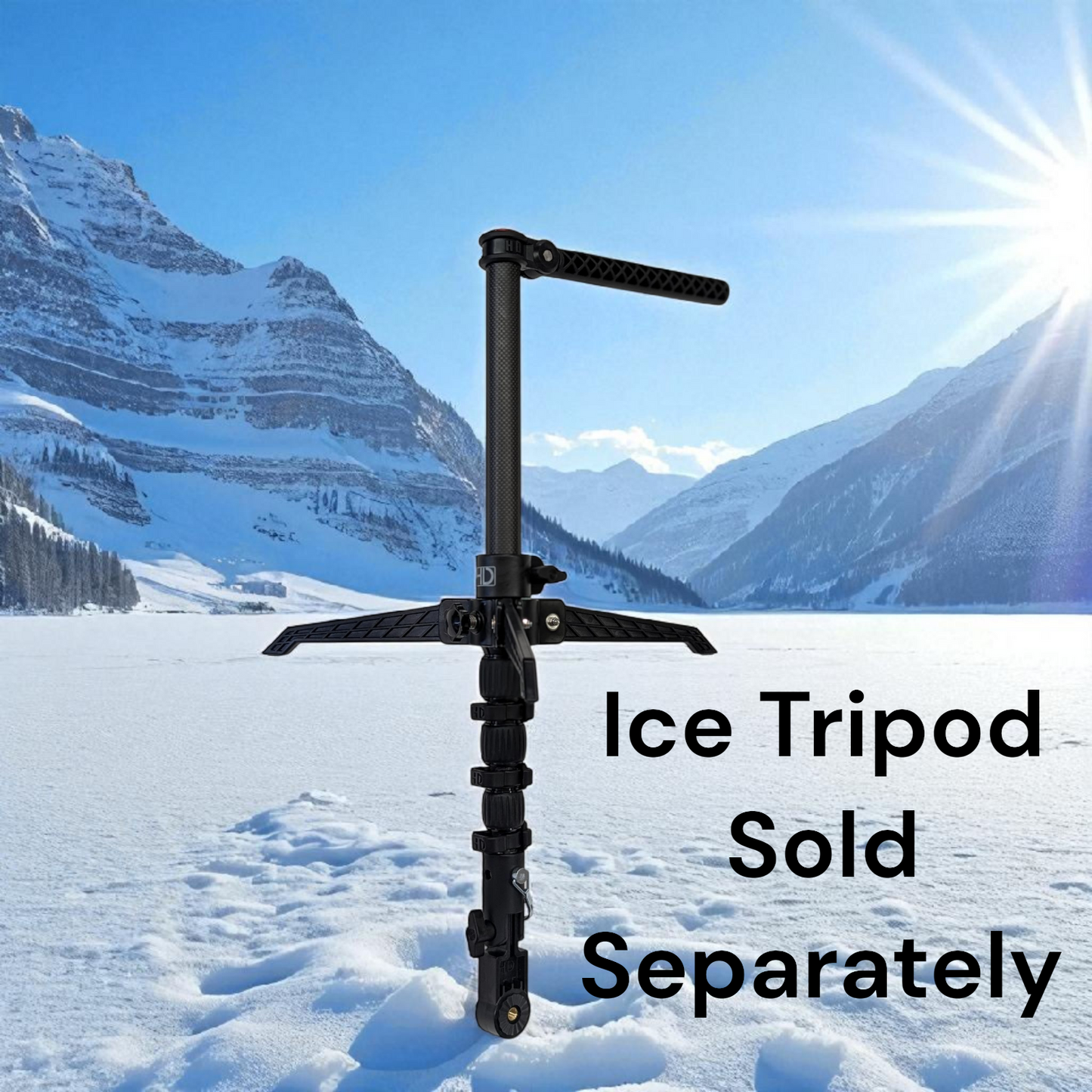

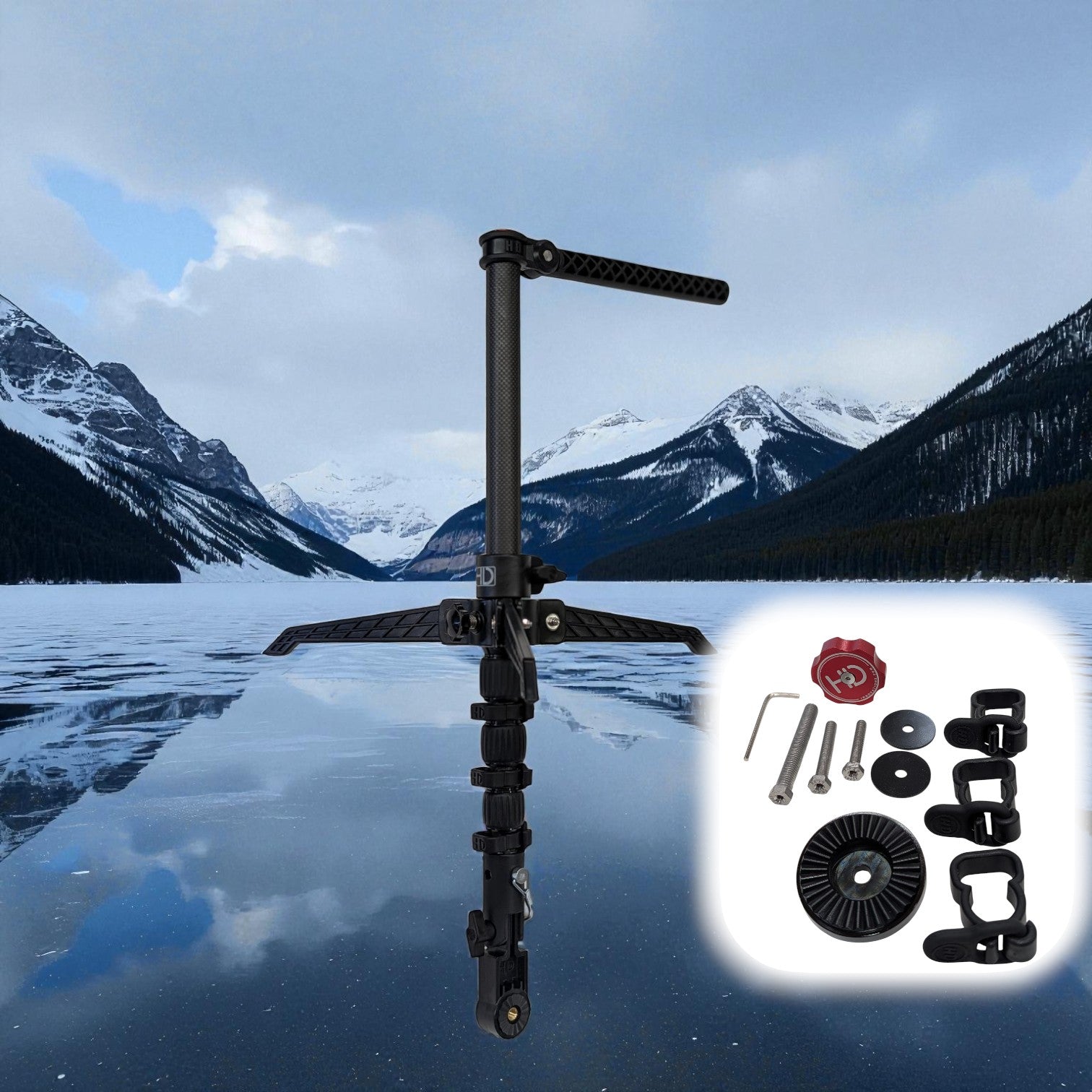

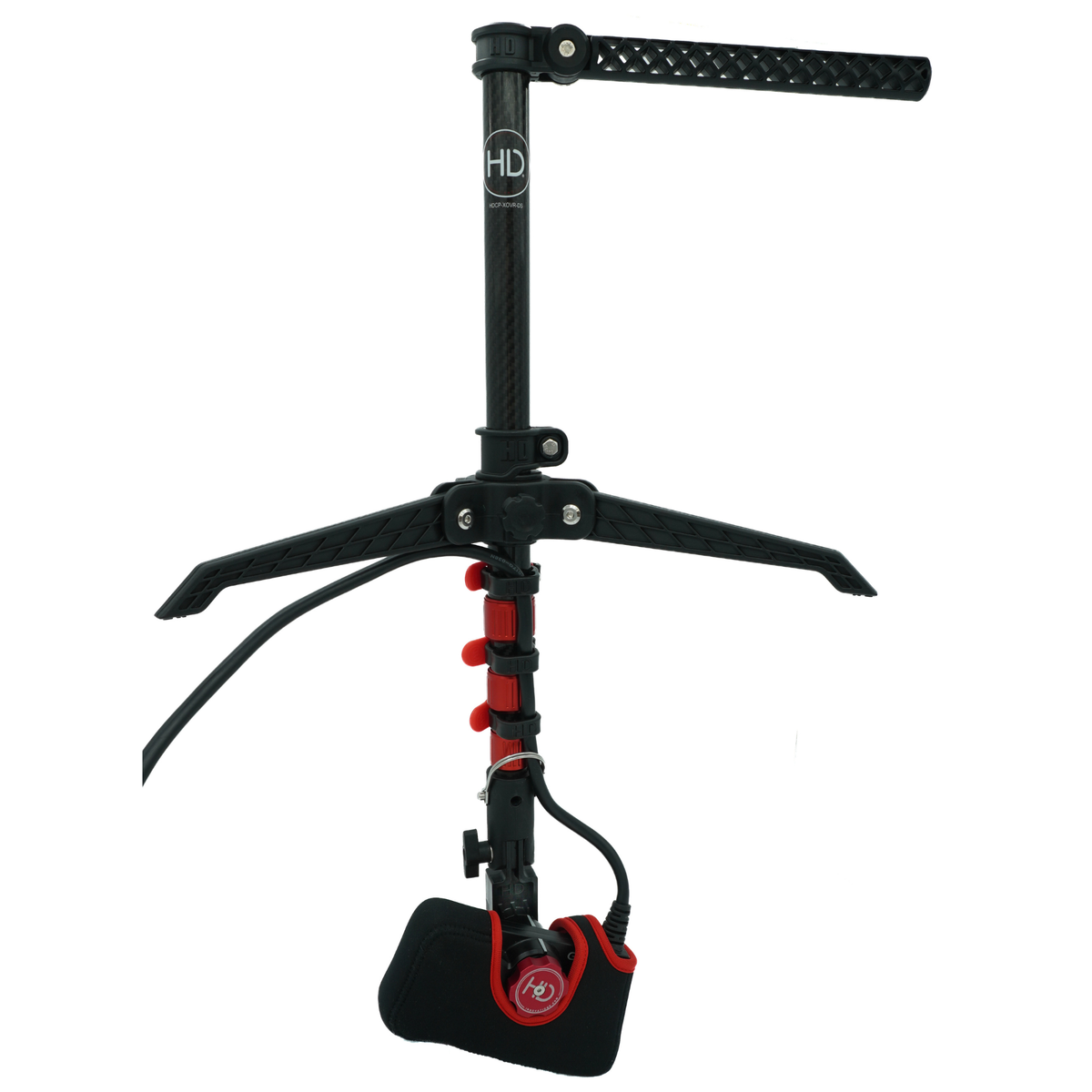

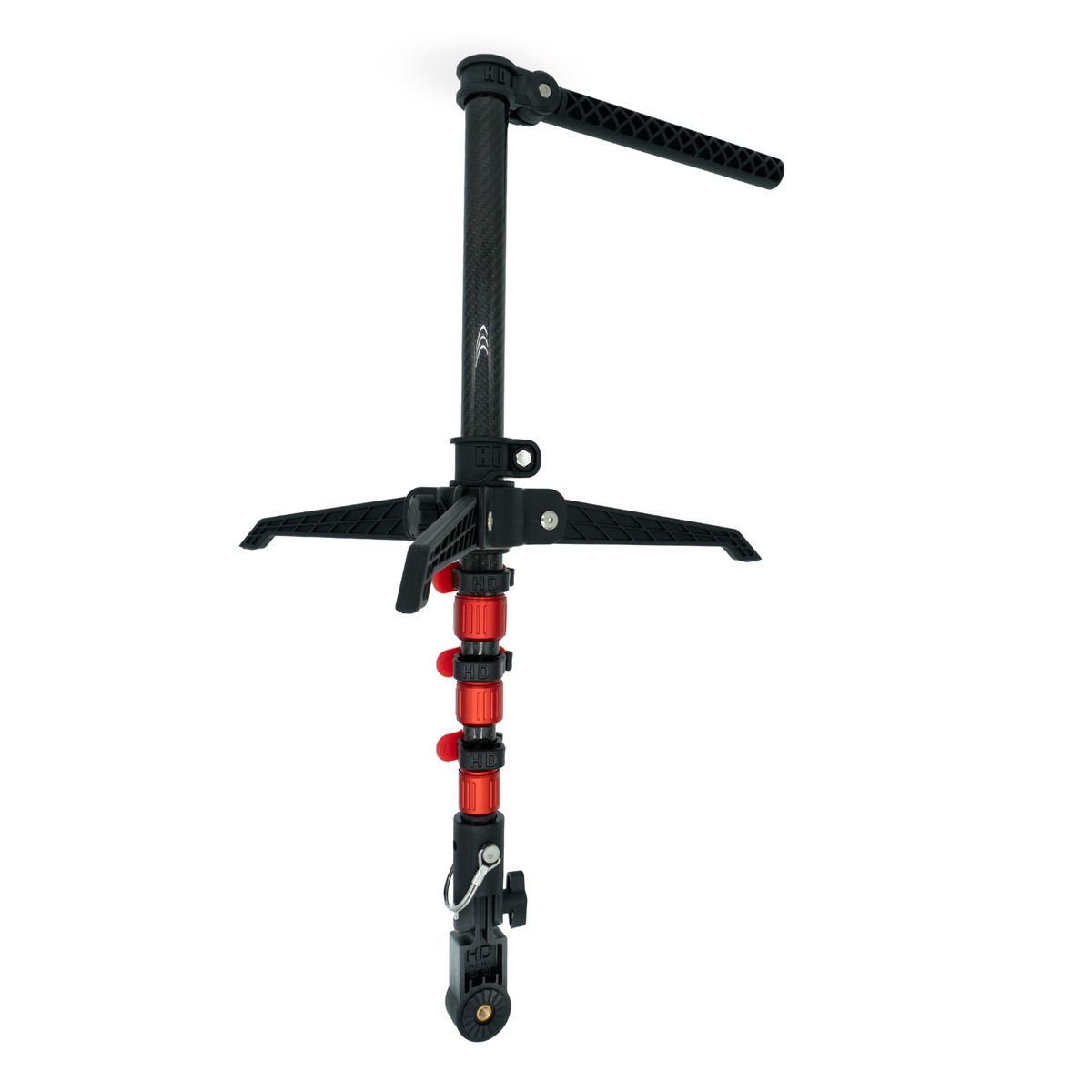

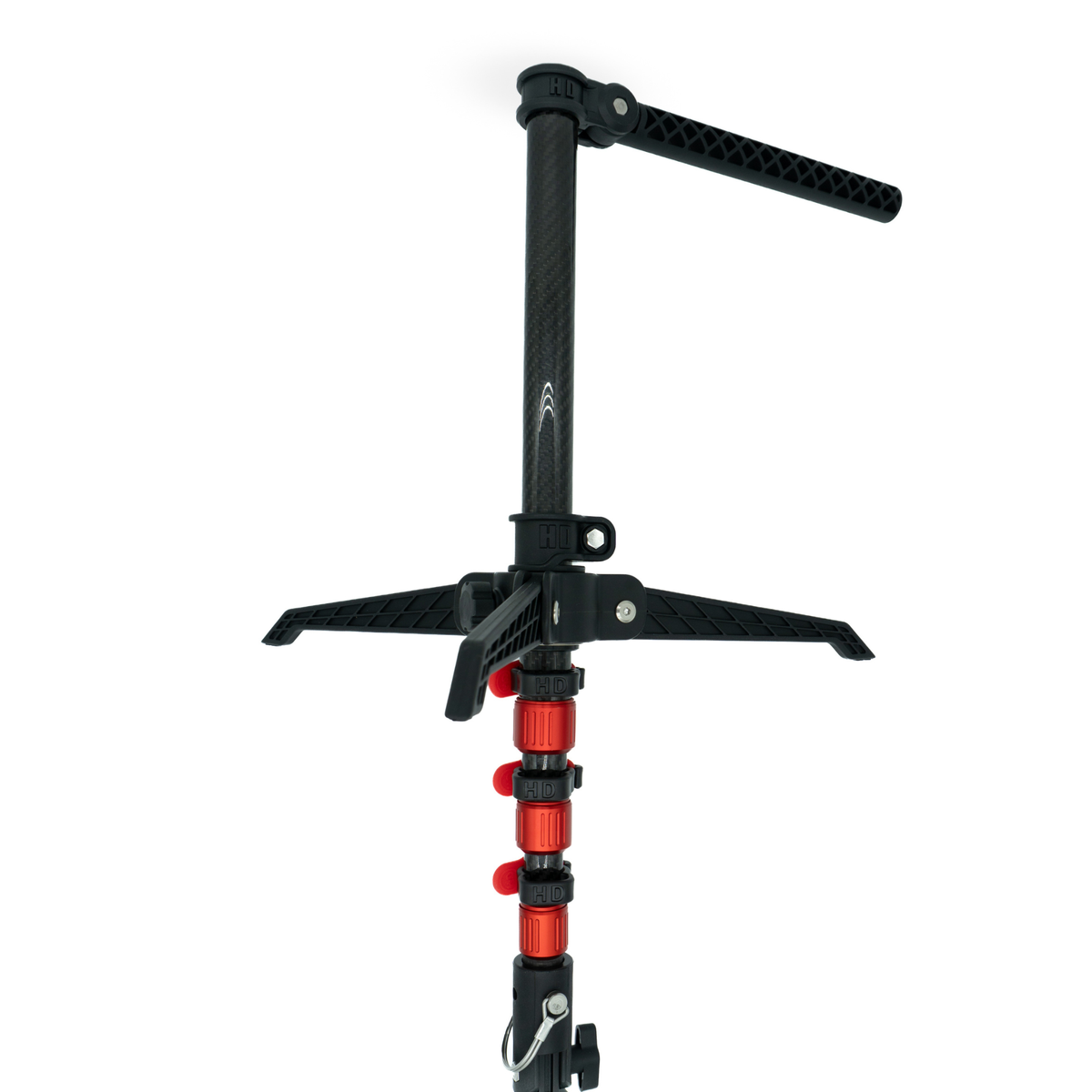

• FOR "ALL SEASONS", ICE AND OPEN WATER, CHOOSE "ALL SEASONS" (WITH ICE TRIPOD) ($20 SAVINGS ON TRIPOD)
• *NOTE - BOTH OPTIONS ARE EXACTLY THE SAME WITH EXCEPTION OF THE ICE TRIPOD. TRIPOD CAN BE ADDED TO "OPEN WATER" OPTION AT ANY TIME.

STEP 2

• CHOOSE TRANSDUCER TYPE
• BY DEFAULT THE X-OVER COMES WITH ALL MOUNTING HARDWARE FOR GARMIN LVS32/34/62, ACTIVE TARGET 1-2, OR HUMMINBIRD MEGALIVE 1-2. (NOT EAGLE EYE)
• CHOOSE "EAGLE EYE" ONLY IF YOU HAVE LOWRANCE EAGLE EYE.

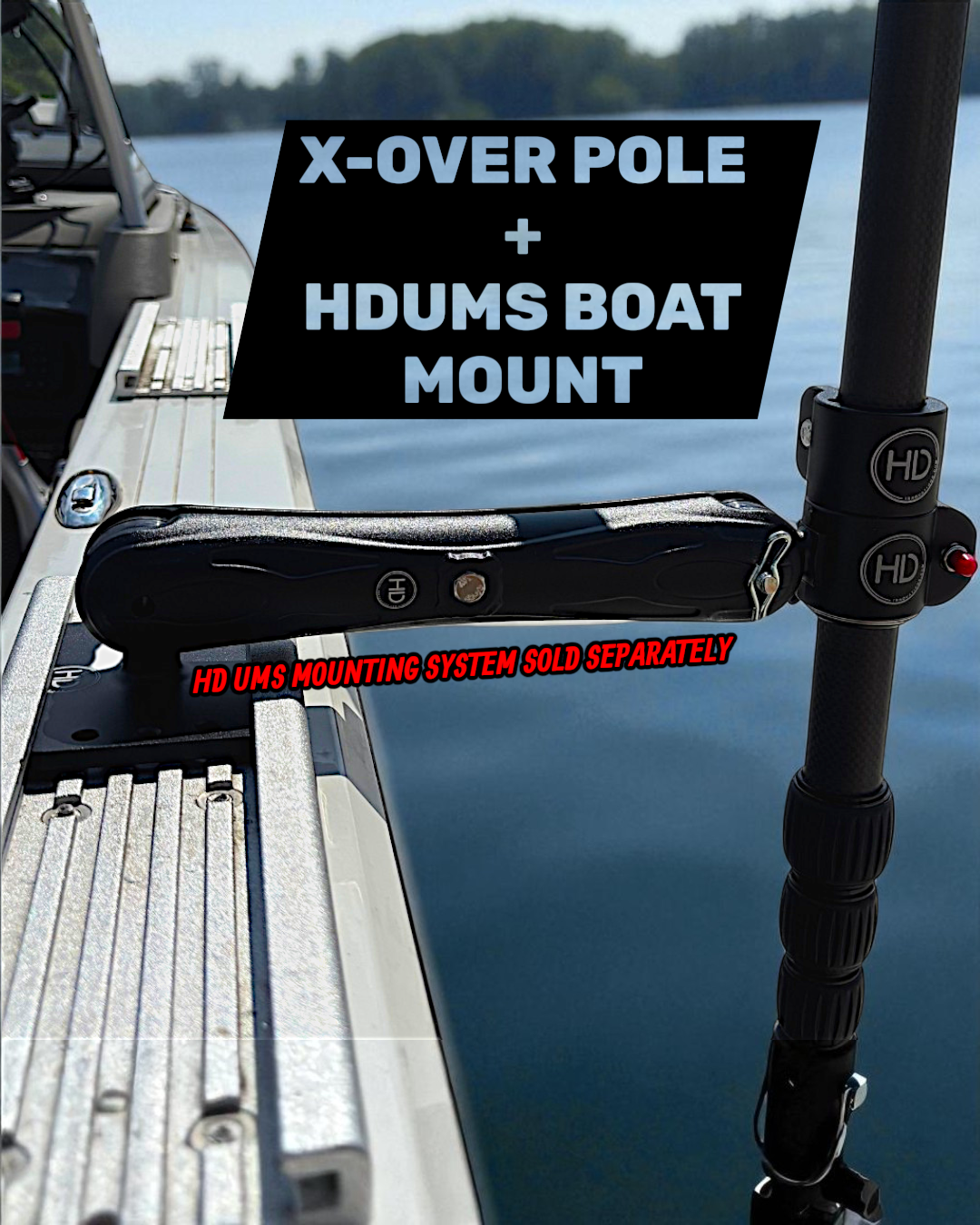

FOR BOAT MOUNTING VISIT THE HD UMS MOUNTING PAGE  https://www.hdinnovations.com/collections/hd-ums-universal-mounting-system

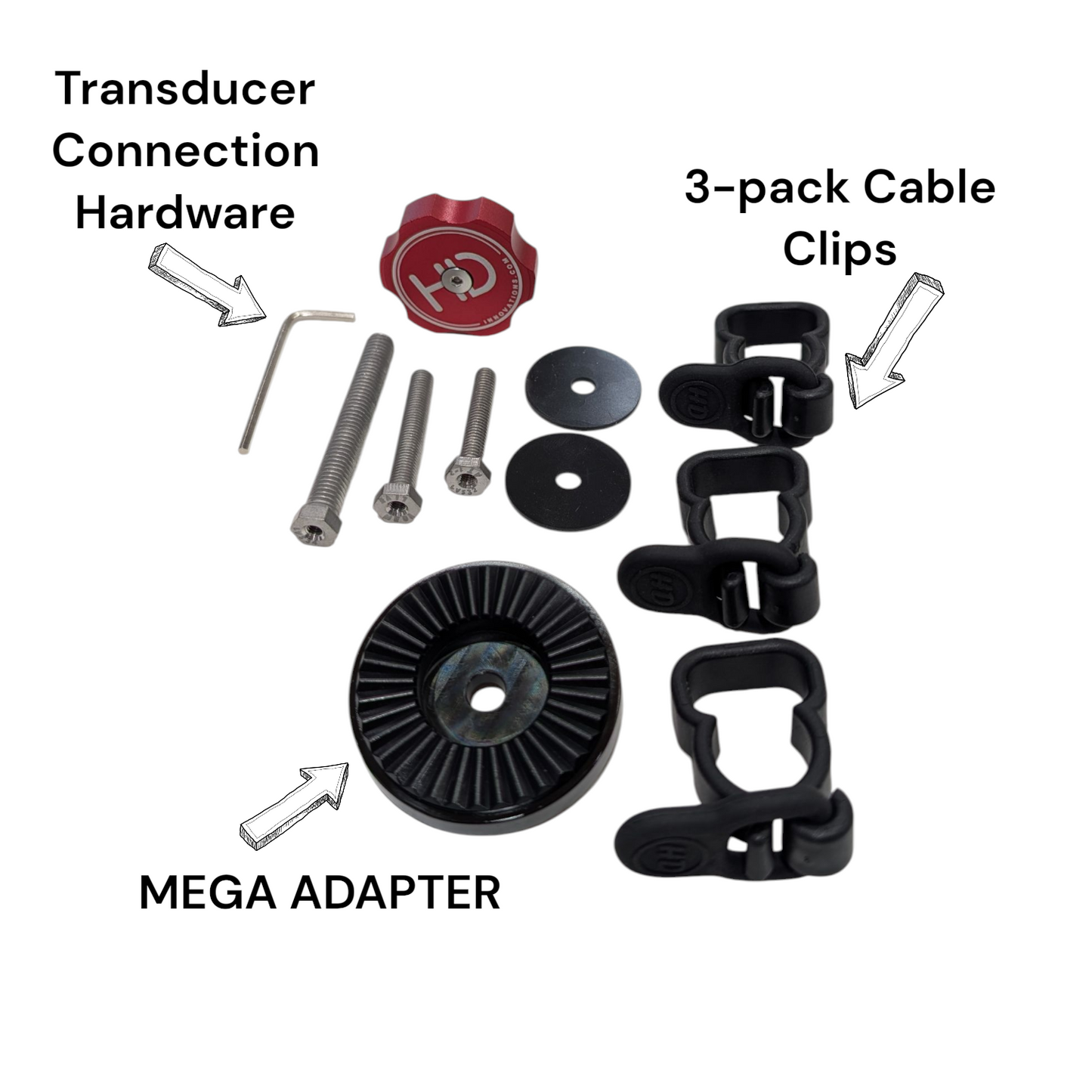

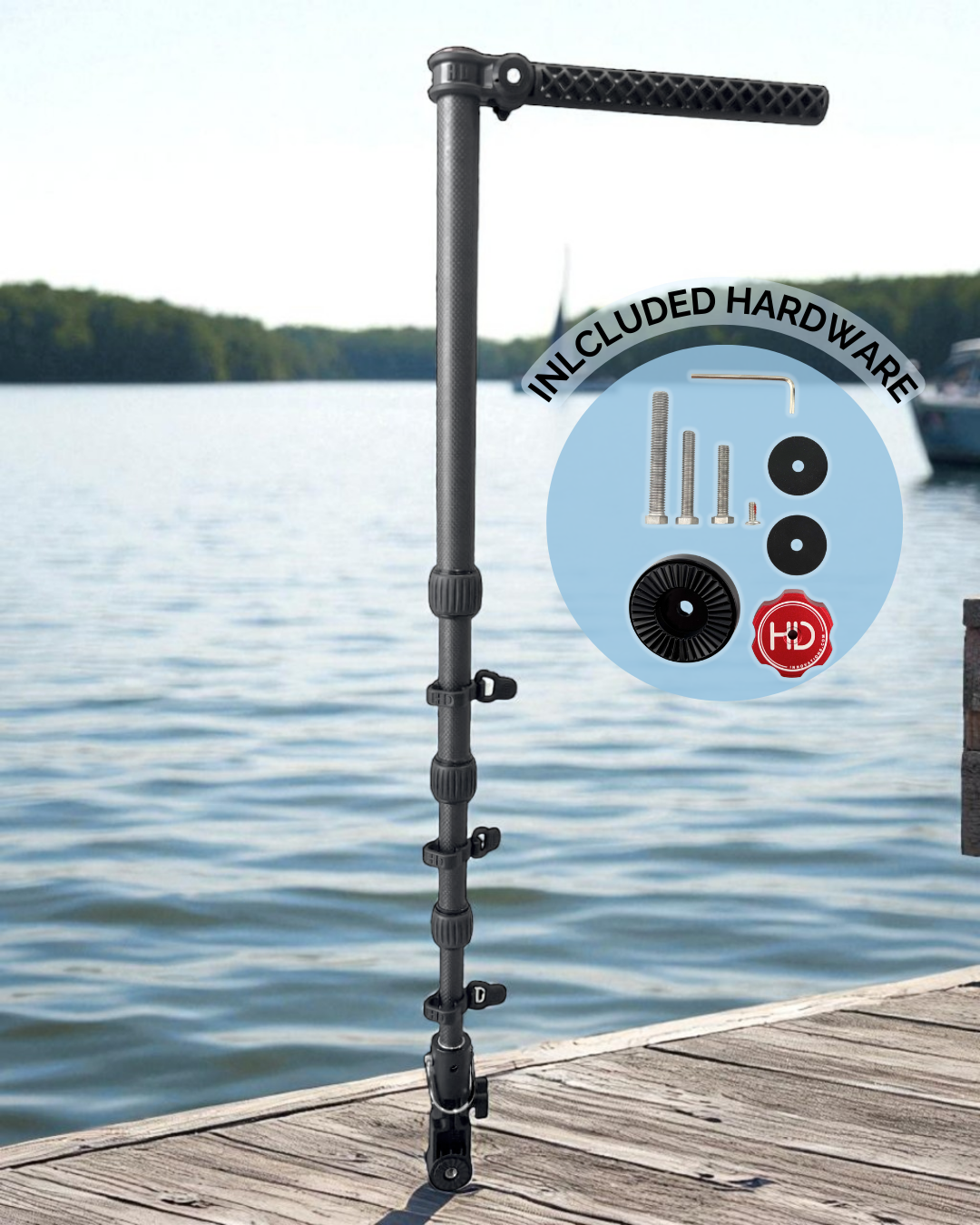

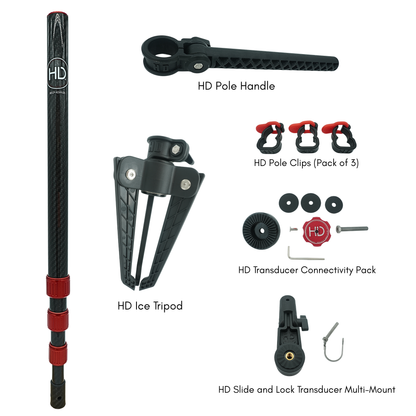

HDI X-POLES INCLUDE THE FOLLOWING

• Pole
• Handle

• Transducer mount
• 3 pack cable clips
• Interchangeable Transducer knob design for LVS34 / LVS32 / AT 1-2 / Mega Live 1-2, Mega Live adapter disk.

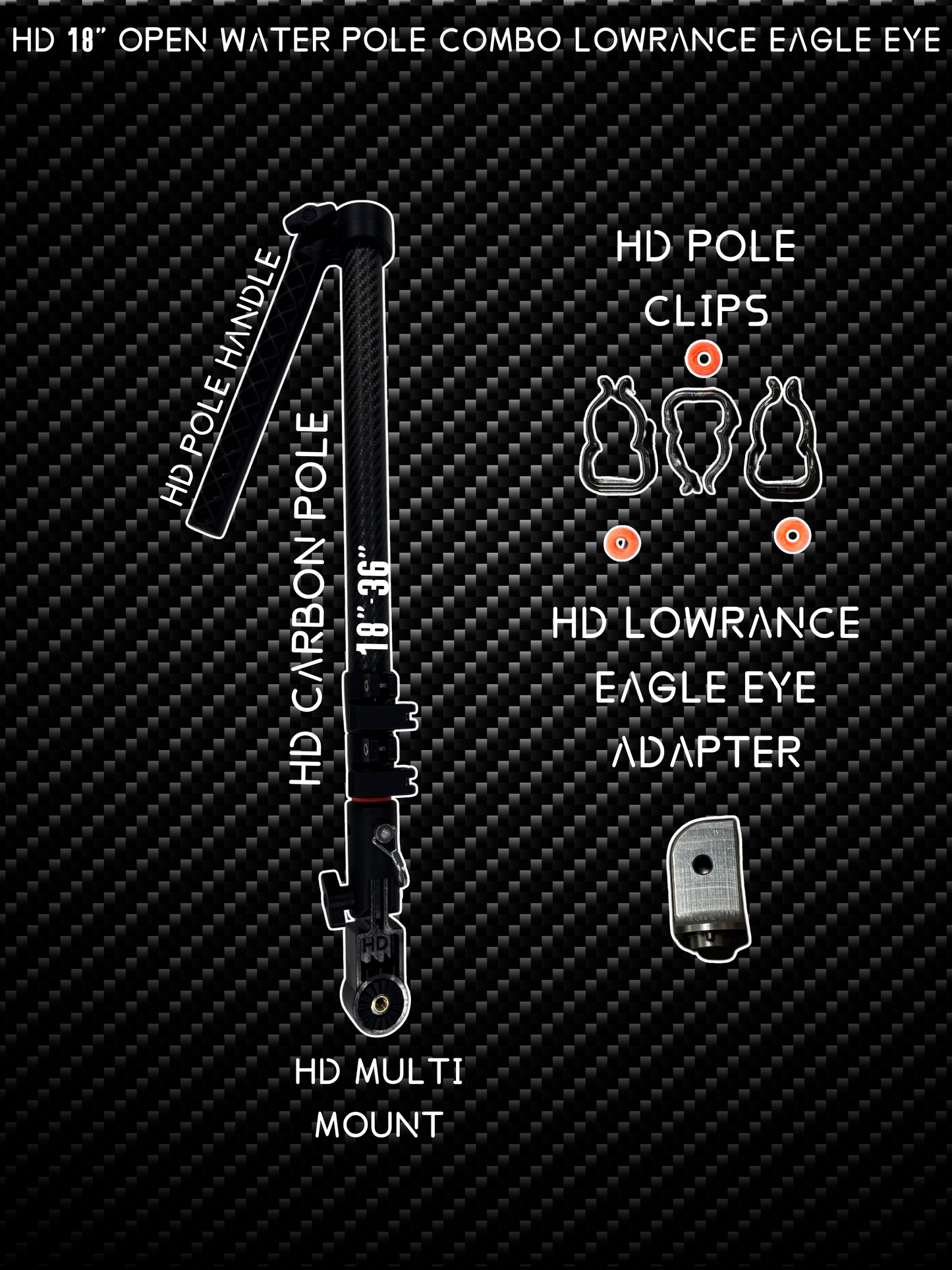

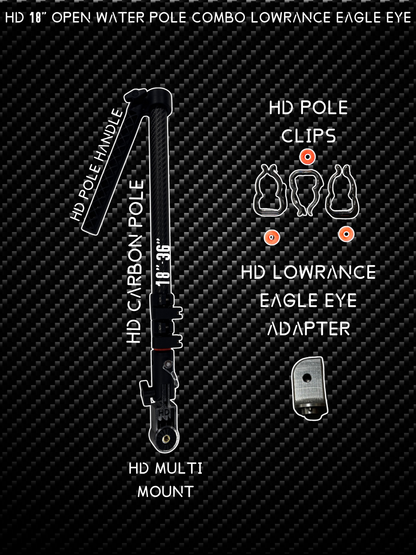

• *EAGLE EYE POLE WILL COME WITH ONLY EAGLE EYE TRANSDUCER MOUNT

Pole length

• 4 pole sections - 20" collapsed 60" extended (Measured from top of handle to transducer mounting screw)

New for 2025

       Pole

• 20"-60'" 4 section length with twist locking aluminum section clamps making the X-Over the most compact 60" pole on the market!
• Aluminum threaded end cap for 20" carbon length extensions  (HDPL-EXT)
• Non Stick internal sliding channels to help prevent freezing
• Aluminum precision fit transducer adapter bushing


       Handle

• Anti-loosen hardware
• Constant tension O-ring design
• Inline design for accurate transducer direction

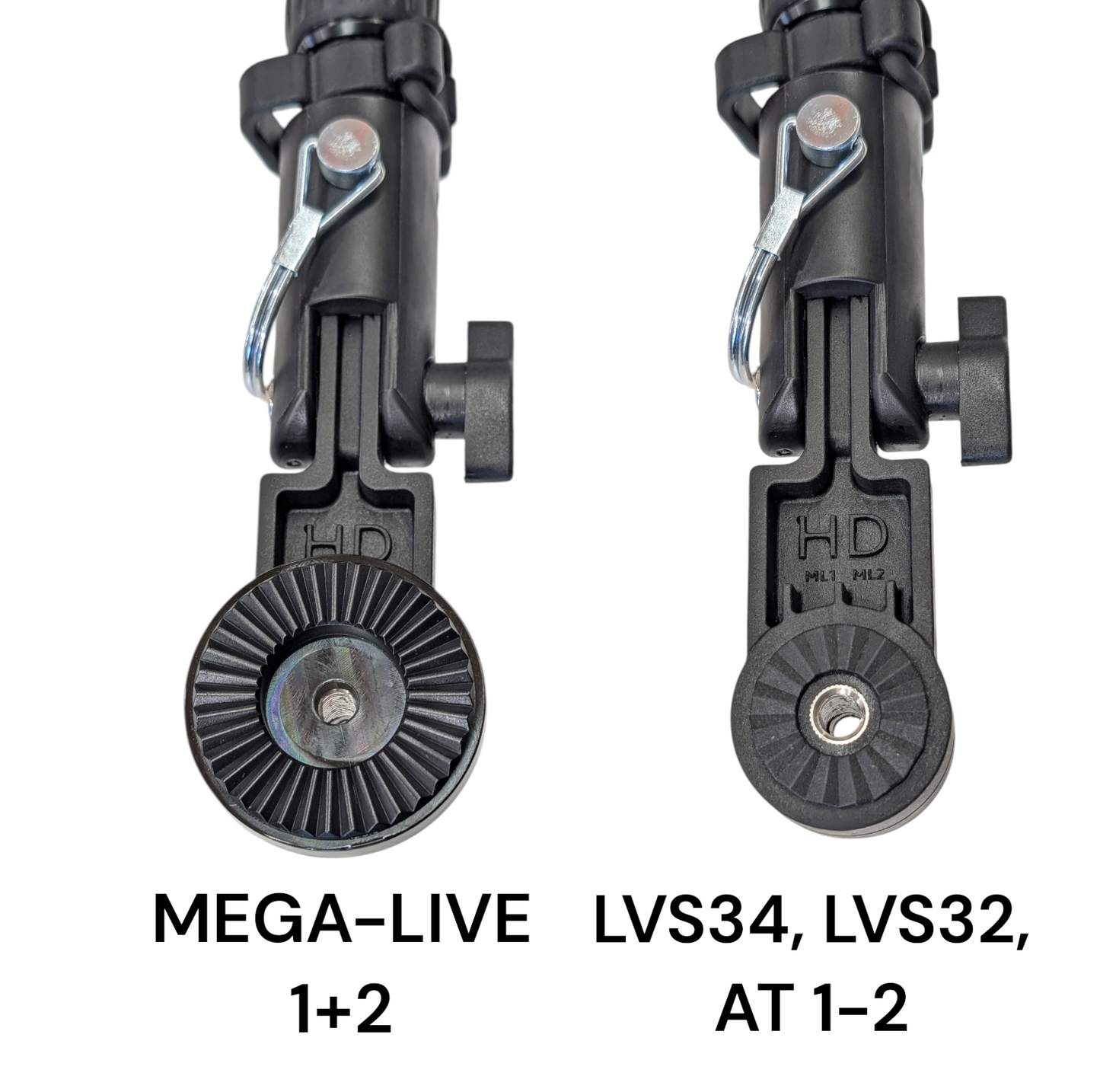

       Transducer Mount

• Added Mega Live 2 compatibility

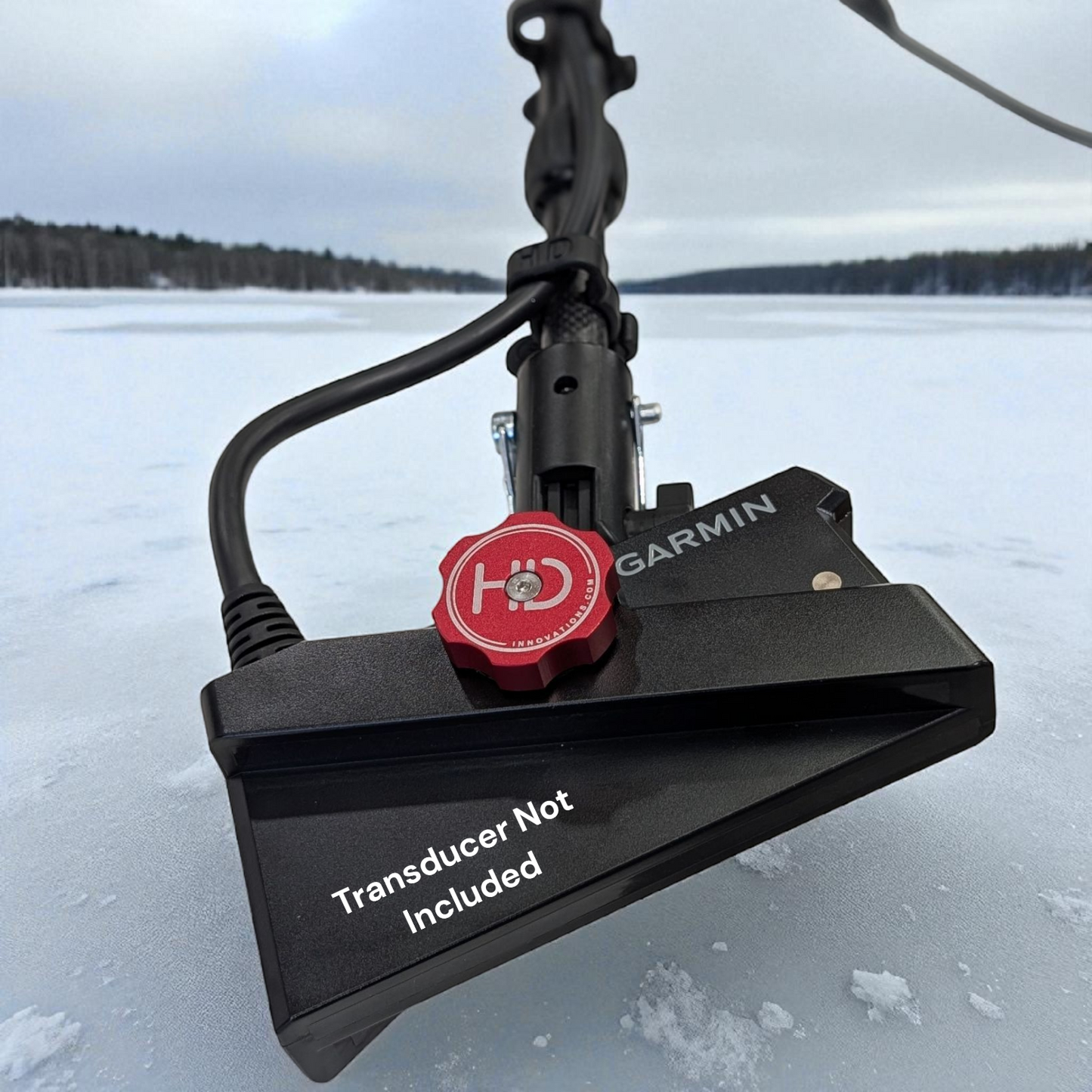

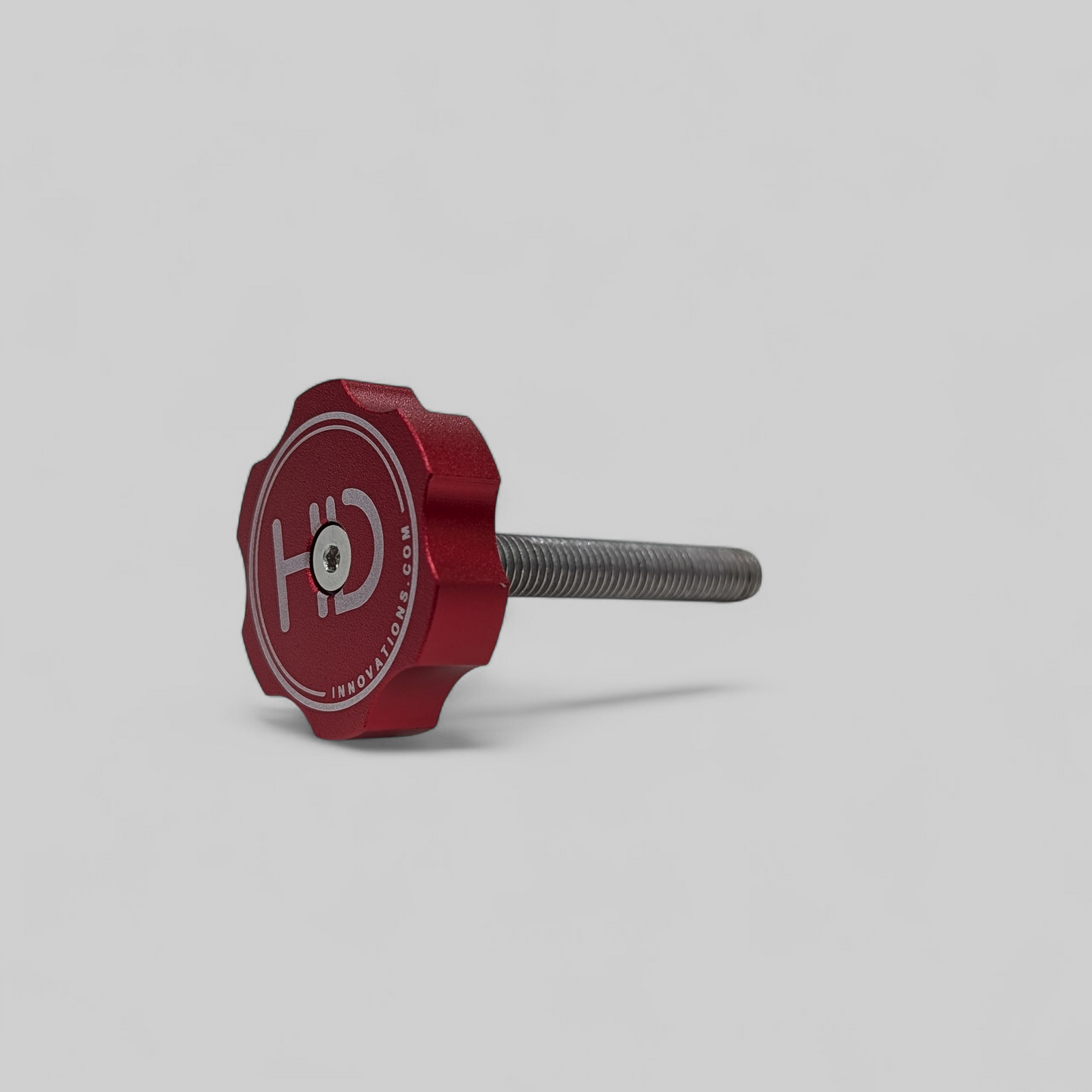

       Transducer Mounting Knobs

• HD Exclusive Interchangeable Transducer Bolts
• Red Anodized Aluminum Knob With HD Laser Logo
• Interchangeable Bolts for  LVS34, LVS32, AT 1-2, Eagle Eye, MegaLive 1-2

       OPTIONAL STACKABLE 20"

• 20" LONG X  1-1/8" Diameter polished Carbon fiber extension
• Stackable design allows for adding 20" sections to reach desired length
• Aluminum Red anodized male and female 3/8-16 threaded ends
• Compatible with HD "Red Cap" Poles. (Aluminum Red Cap and Epoxy kits available for converting HDI non red cap poles)

Both Gen 1 (lever clamp) and Gen 2 (twist lock) poles are fully compatible and are fully interchangeable. For upgrade information message HD directly through the website chat app.

Pole Diameters

• Top (Handle / Mounting Tube) 1.125" (1 1/8")
•  Section 2 - 1"
• Section 3 -  .875" (7/8")
• Section 4 - .75" (3/4")
• Transducer Mount Bushing Diameter .875 (7/8")

Fully compatible with HDI UMS pole mounting solutions

Additional Details and Information

HD Innovations prioritizes user experience in their designs! The HD Carbon FFS pole system is crafted to withstand the elements on both ice and open water while exceeding expectations. Featuring a proprietary 3k carbon fiber telescoping pole with channels for precise handle and transducer alignment. This system includes aluminum twist locks with rubber grips for length adjustment even in freezing conditions. Weighing less than 1.75lbs, it stands as the lightest pole system available.

The groundbreaking HD MULTI-MOUNT transducer mount introduces the innovative Patent Pending "Slide and Lock" design for unparalleled functionality. This mount guarantees a secure locking 90-degree transducer angle for optimal imaging in the most demanding environments. With a simple slide down and tip up , the transducer can be instantly deployed into perspective mode. The versatile lower design allows this mount to accommodate LVS32, LVS34, LVS62, AT1 & AT2, and Mega-Live 1+2 with the provided adapter disk. CNC Billet aluminum knobs replace factory shoulder bolts for tool-free transducer mode adjustment.

*Use with non roller style pole holders may void warranty.

*UMS Boat to pole mounting NOT included

*Pole holders not included. (Pole holders included with HDI Shuttle)

*Transducers not included.
