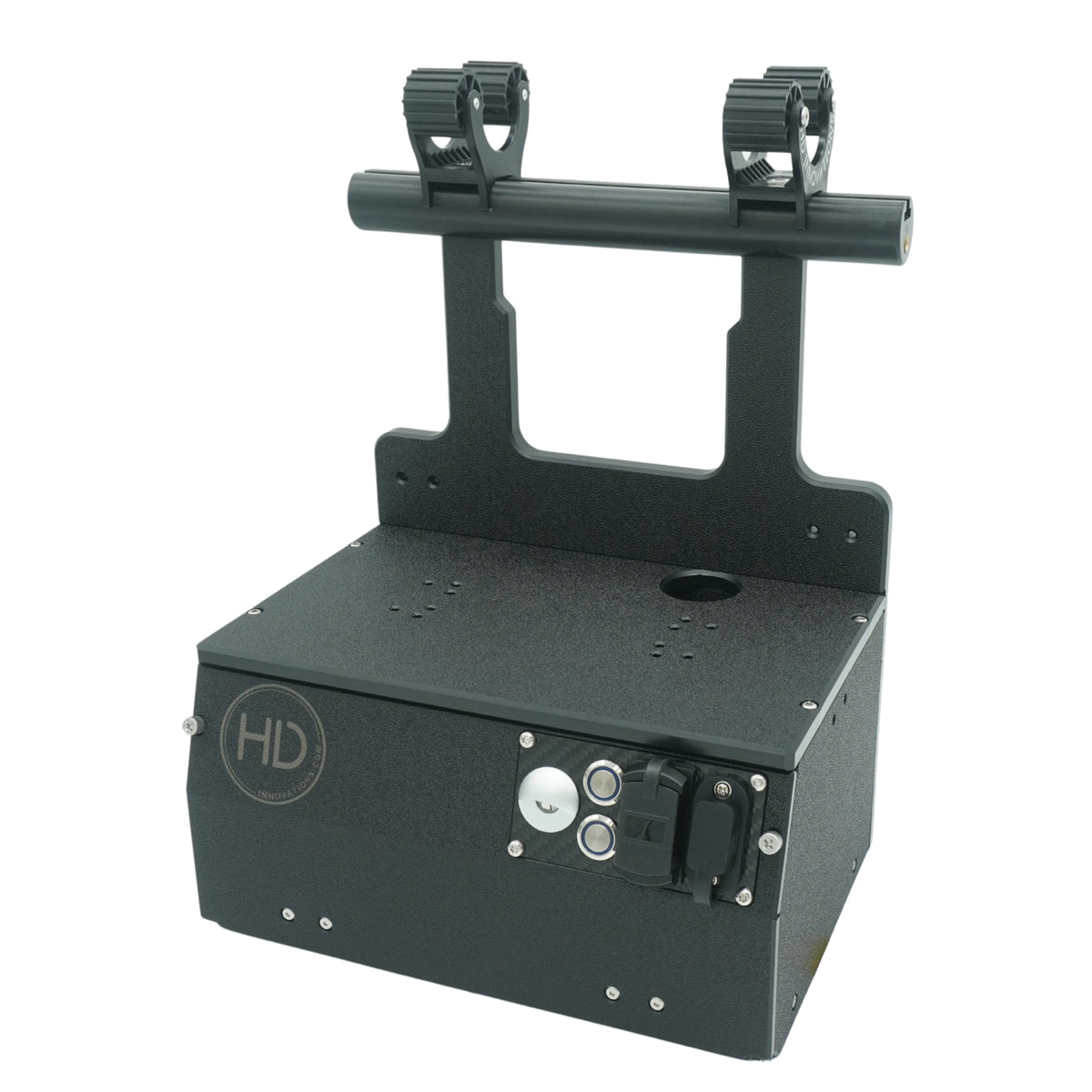

• The HDI Shuttle with the handle and included pole holders installed. The front, top-down angle shows the top mounting holes.

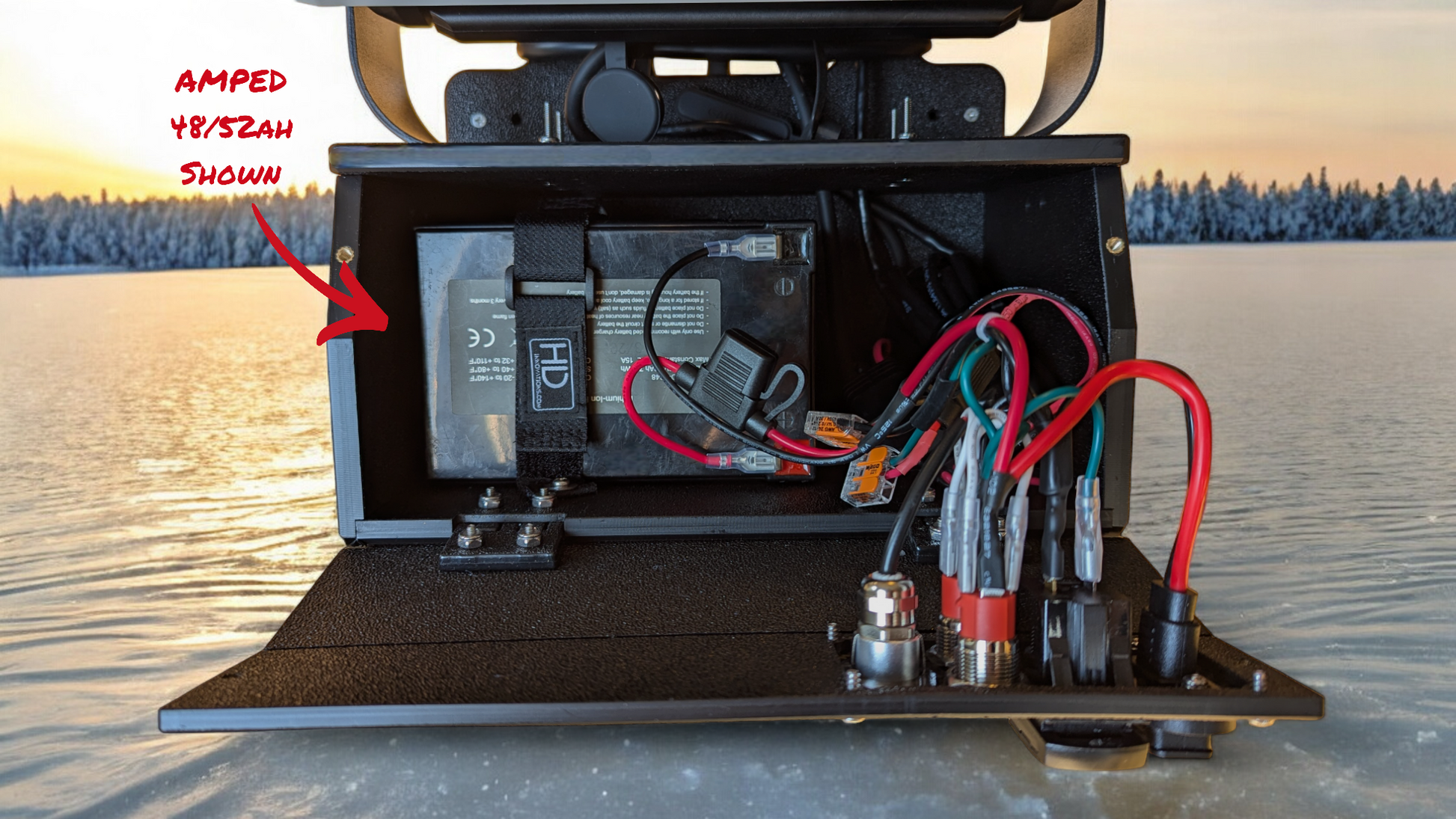

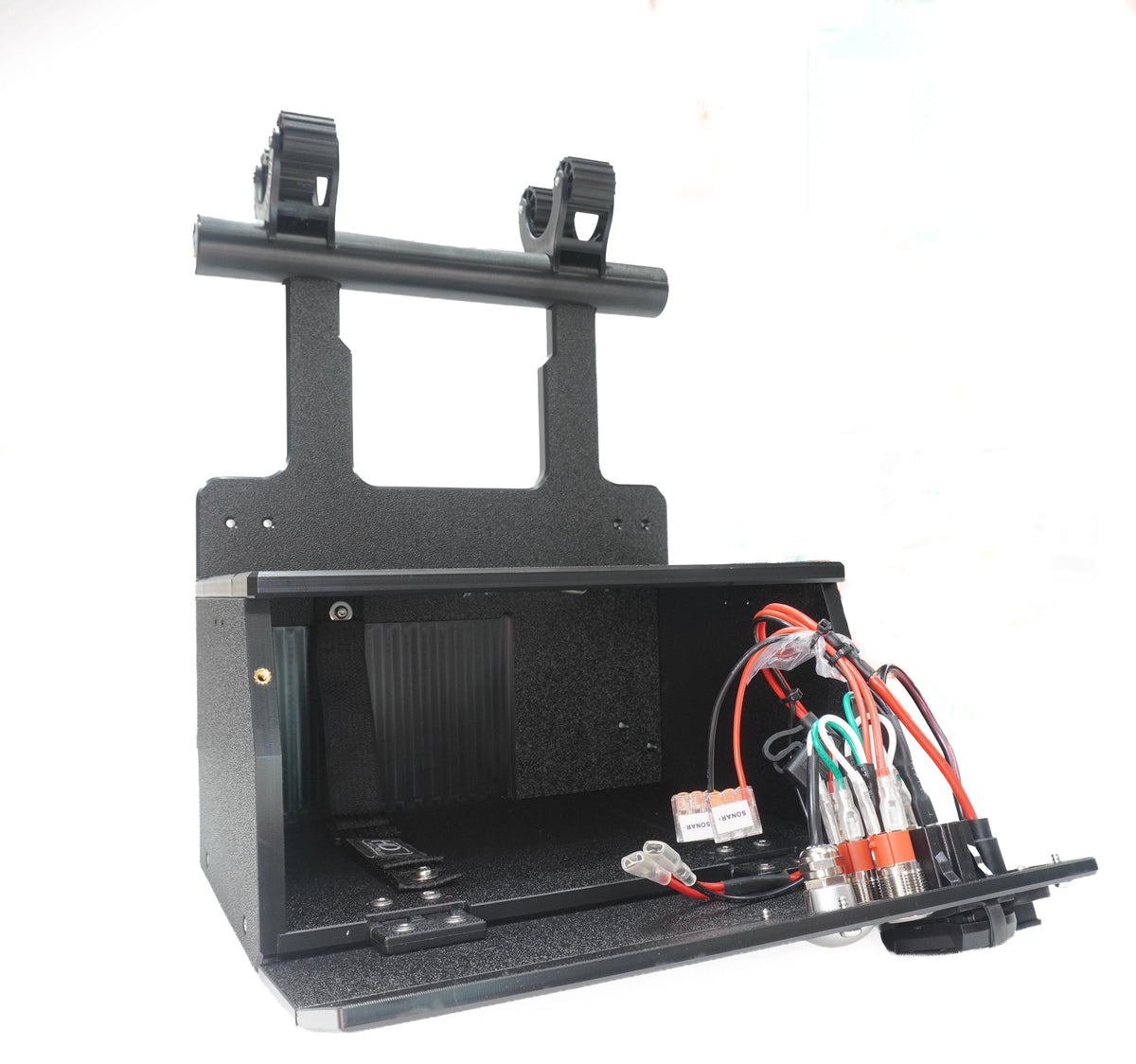

  • The HDI Shuttle with the handle and included pole holders installed, and the front panel open to show the panel wiring and the battery tray and strap inside.

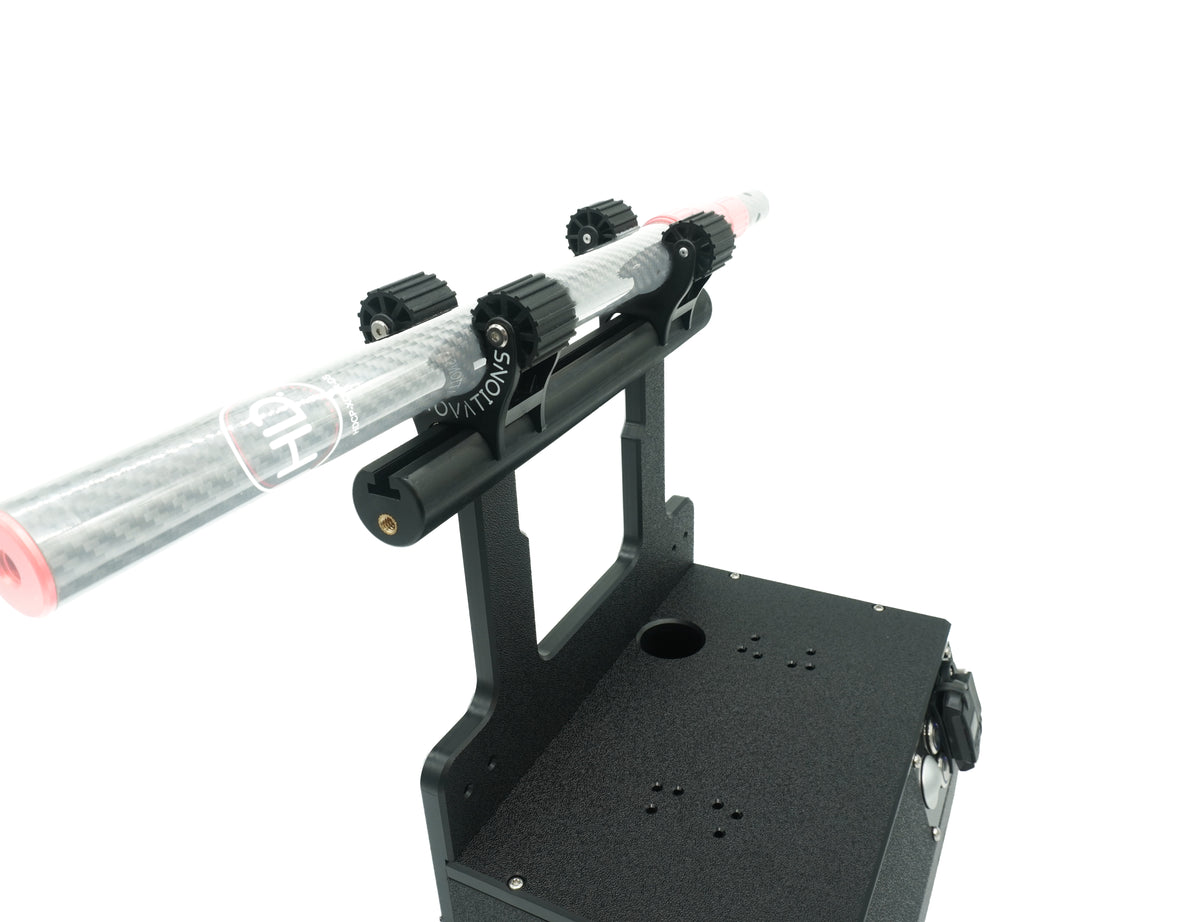

  • The HDI Shuttle with the handle and included pole holders installed, and a grayed-out pole inserted into the pole holders to show functionality

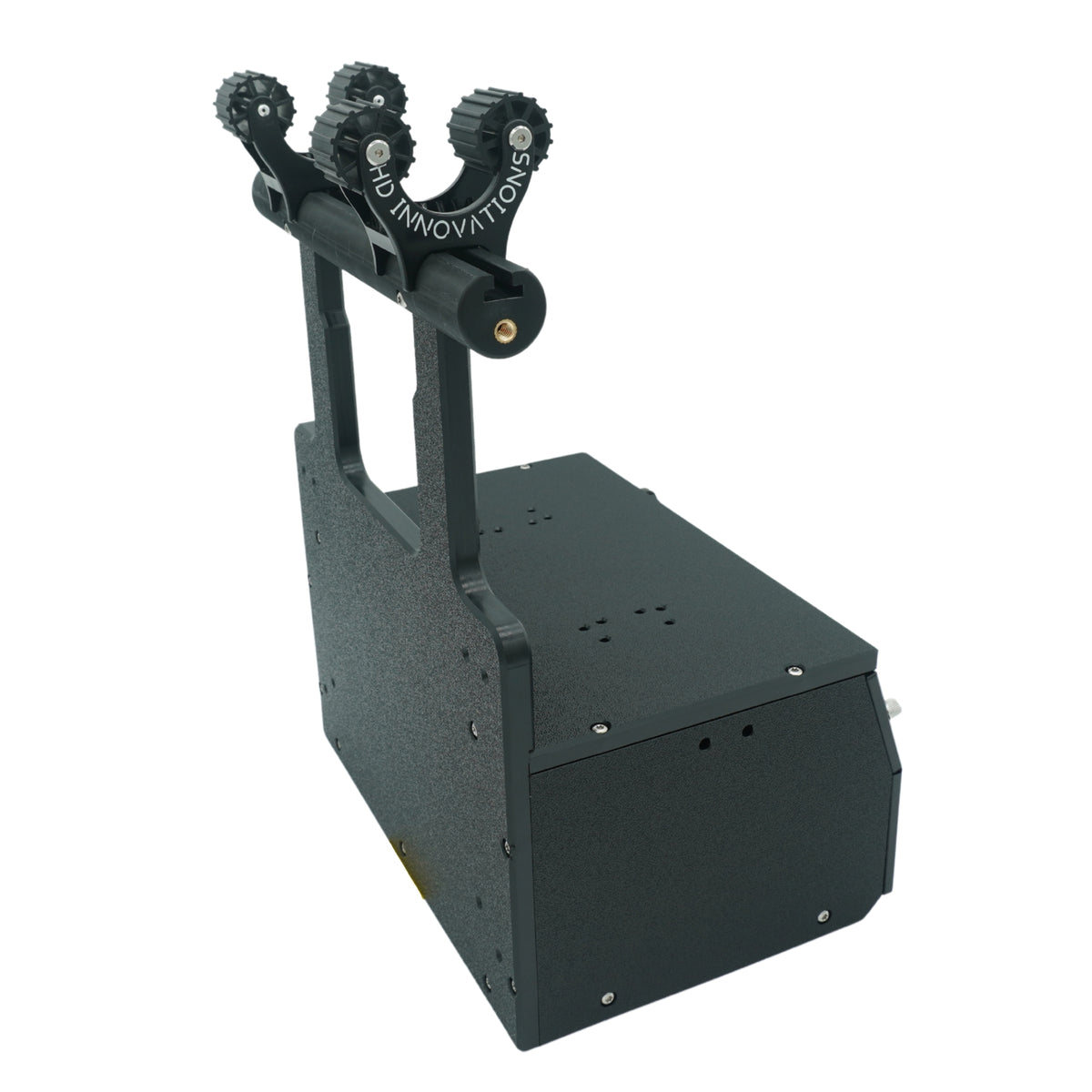

  • A backside view of the HDI Sonar Shuttle to show mounting hole on the back for the black box.
1 10

HD Innovations

HDI Sonar Shuttle

HDI Sonar Shuttle

$240.00 USD
$240.00 USD
Sale Sold out

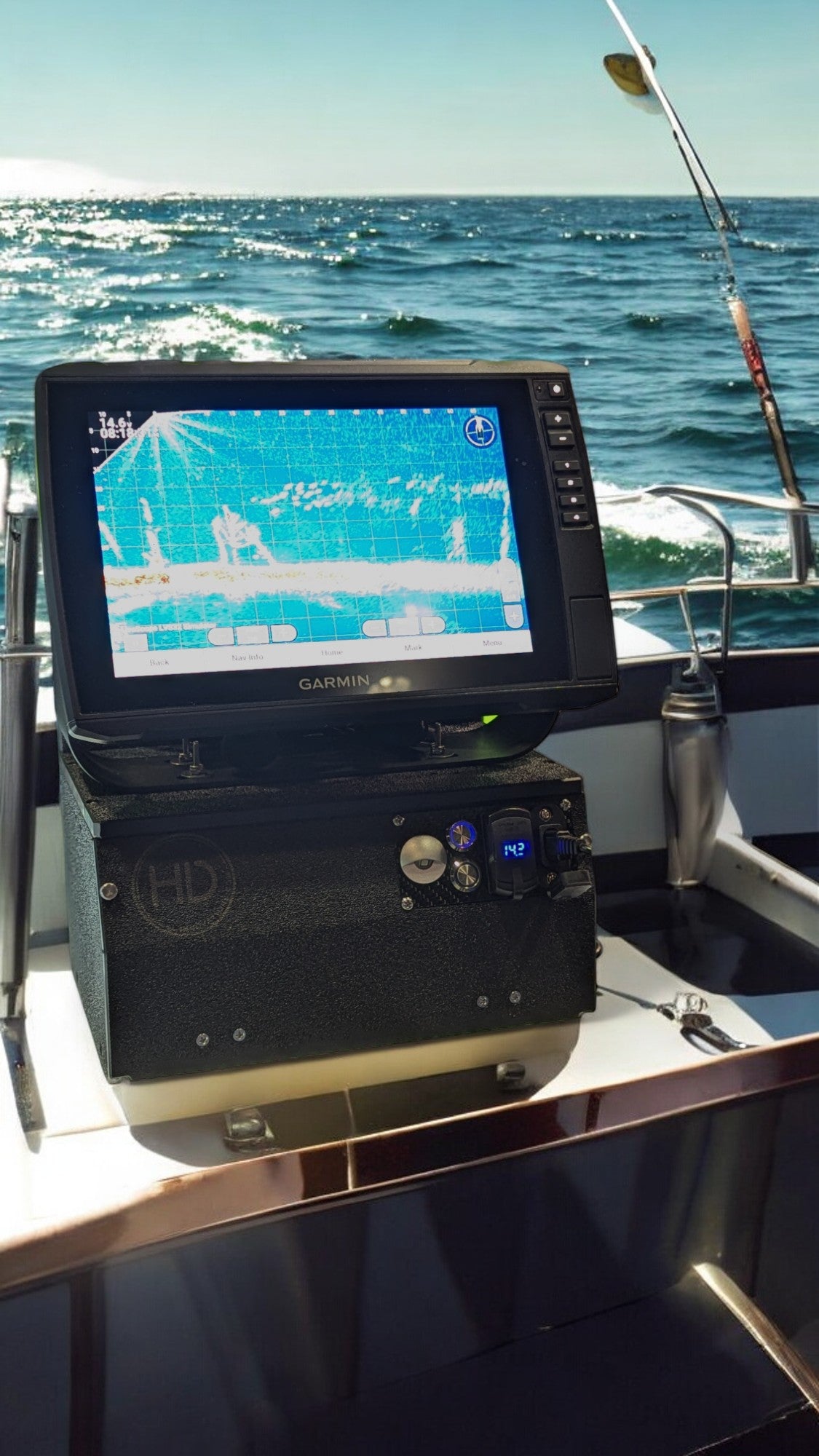

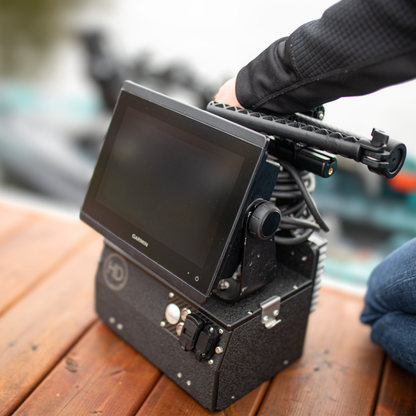

A rugged, portable sonar platform that gives anglers the freedom to take their complete sonar setup anywhere they fish, whether that's on the boat, on the ice, or in a kayak.

Key Features

  • Durable Construction: CNC-machined marine-grade HDPE construction for rugged durability.
  • Power How You Need It: Integrated power, USB charging, and SAE battery charging connections.

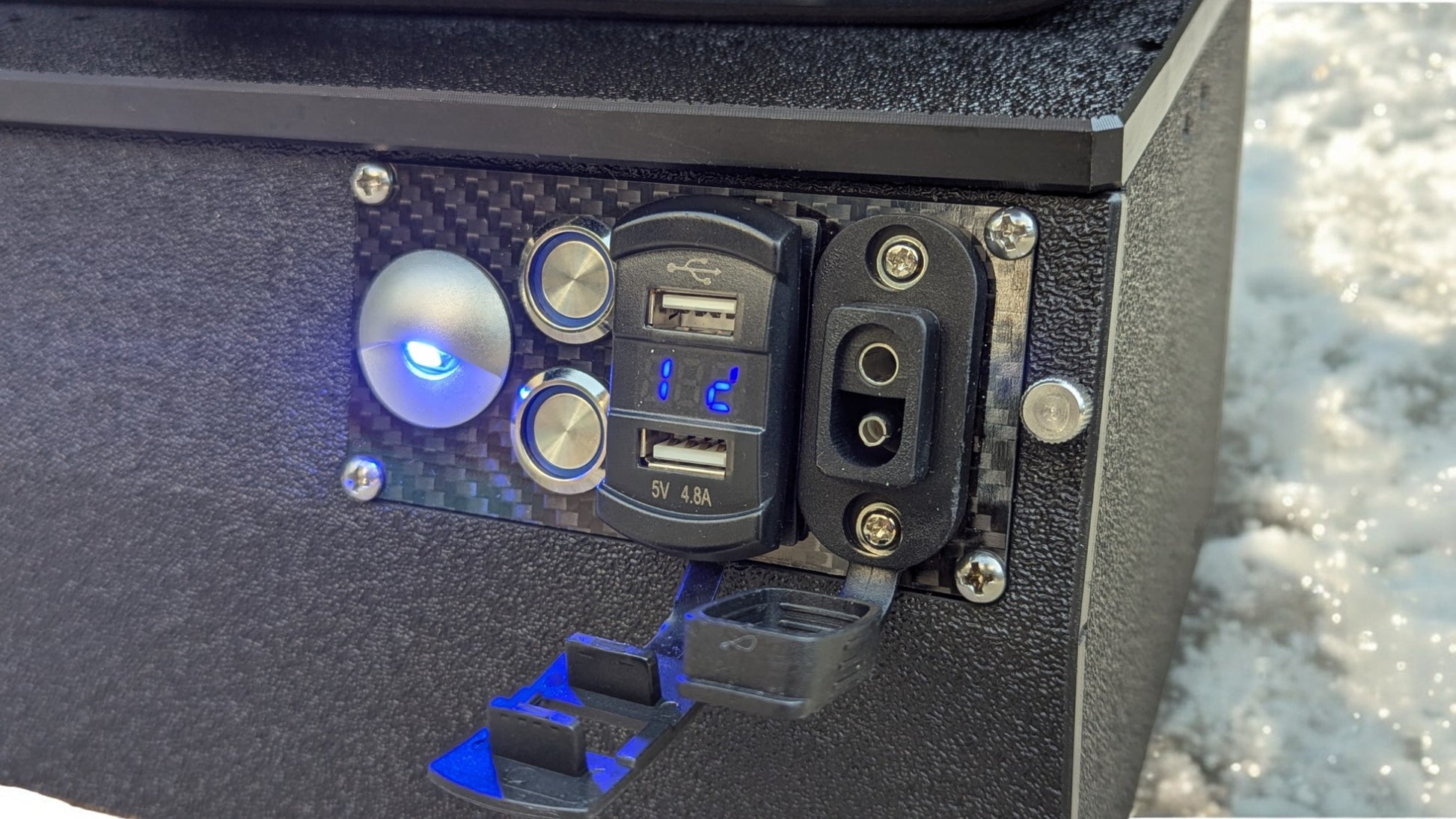

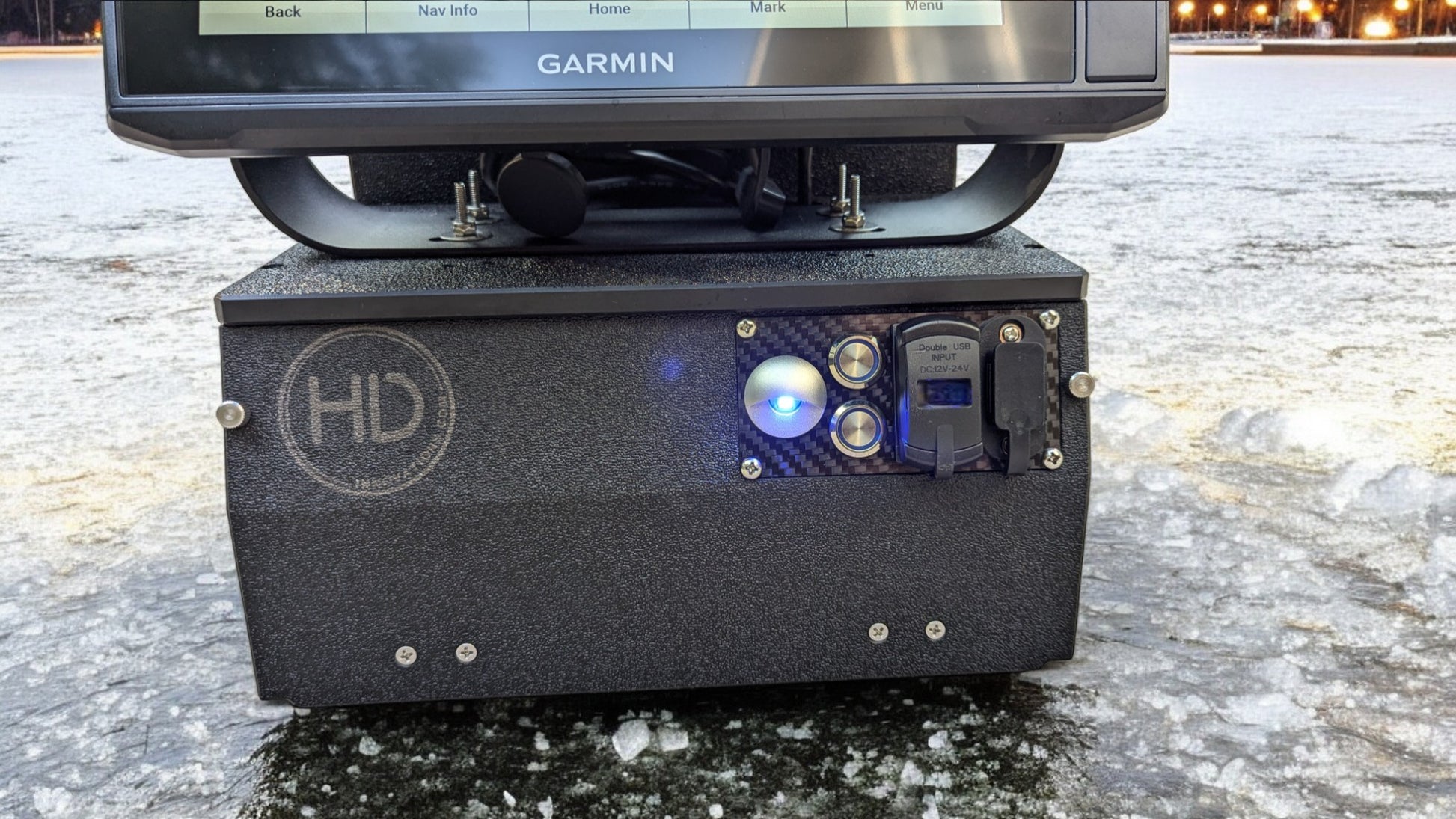

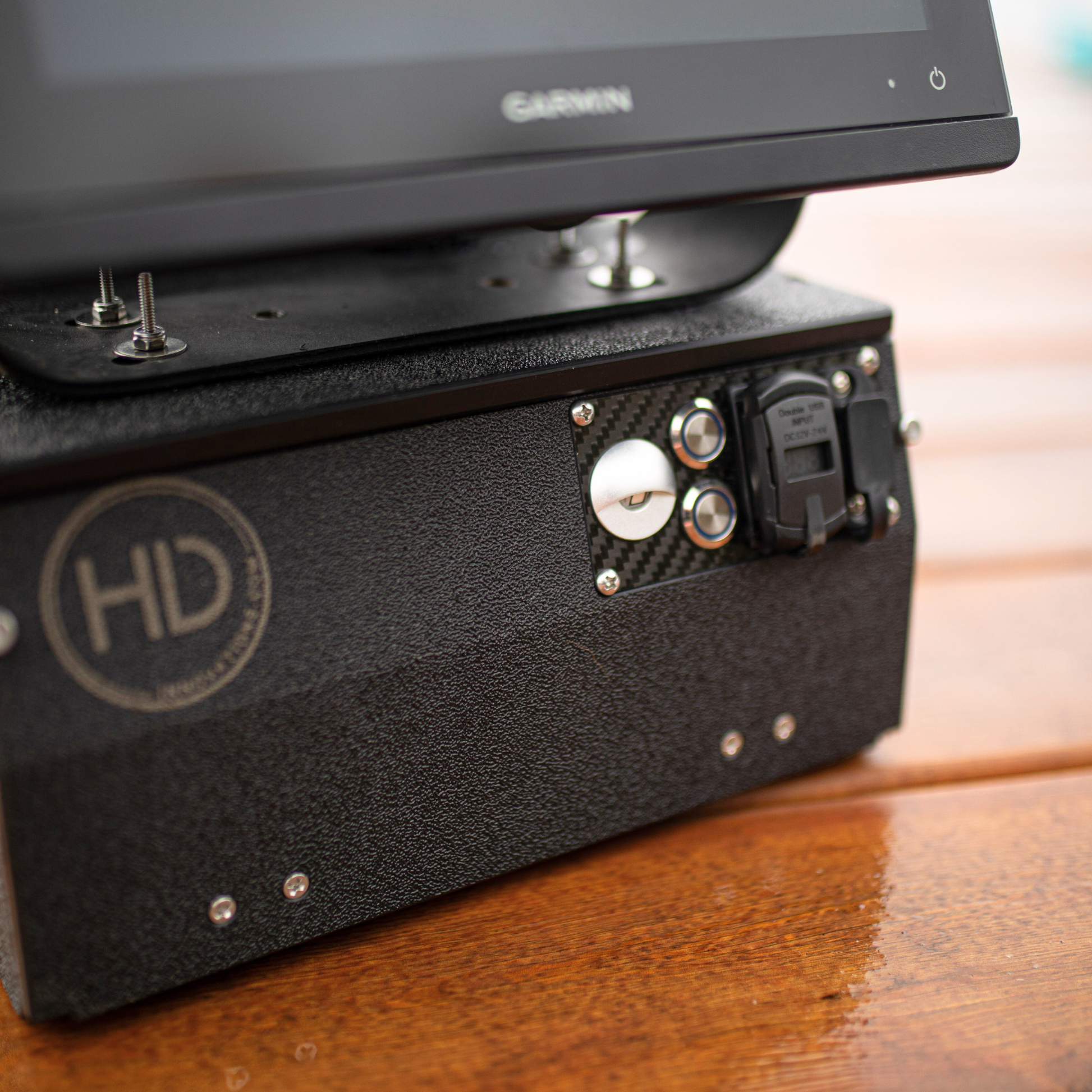

  • Professionally Pre-Wired: Pre-wired carbon-fiber switch panel for a clean, easy setup.
  • Tool-Less Access: Hinged, tool-less front panel with recessed battery tray and Velcro battery strap for quick battery changes.

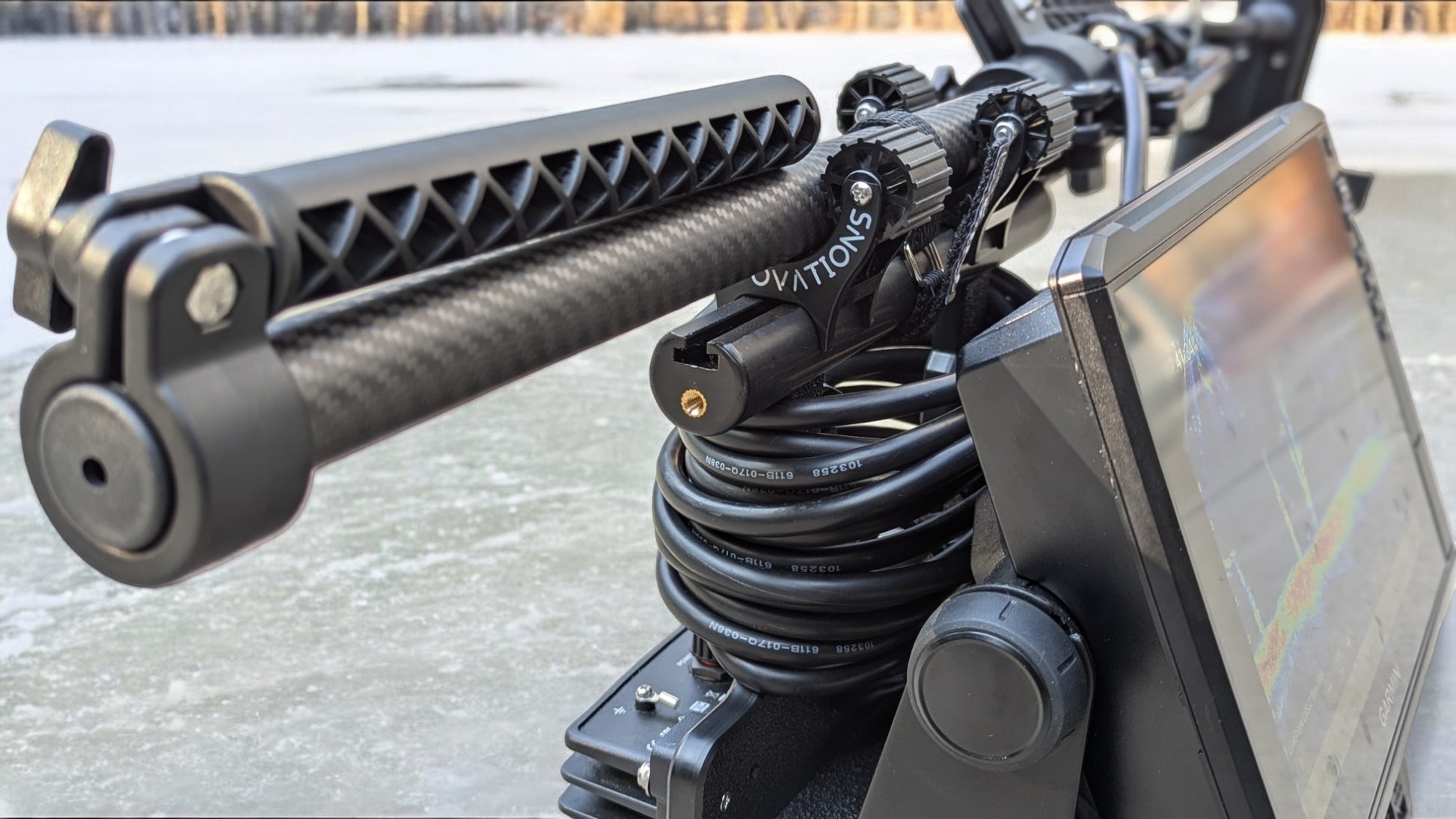

  • Integrated T-Track Handle: Added equipment mounting versatility with included HDI wheeled pole holders.

Born from years of experience on the water and ice, the HDI Sonar Shuttle brings thoughtful innovation through durable construction, organized power management, and flexible sonar mounting in one portable platform. CNC-machined from UV-resistant marine-grade HDPE, it features a pre-wired switch panel, illuminated switches, USB charging ports, a front-mount SAE battery charging port, and integrated top handle T-track mounting. The Shuttle is designed to keep your sonar, battery, and accessories organized while making setup and transport simple.

We do not use 3D printed parts in this shuttle design.

What's Included

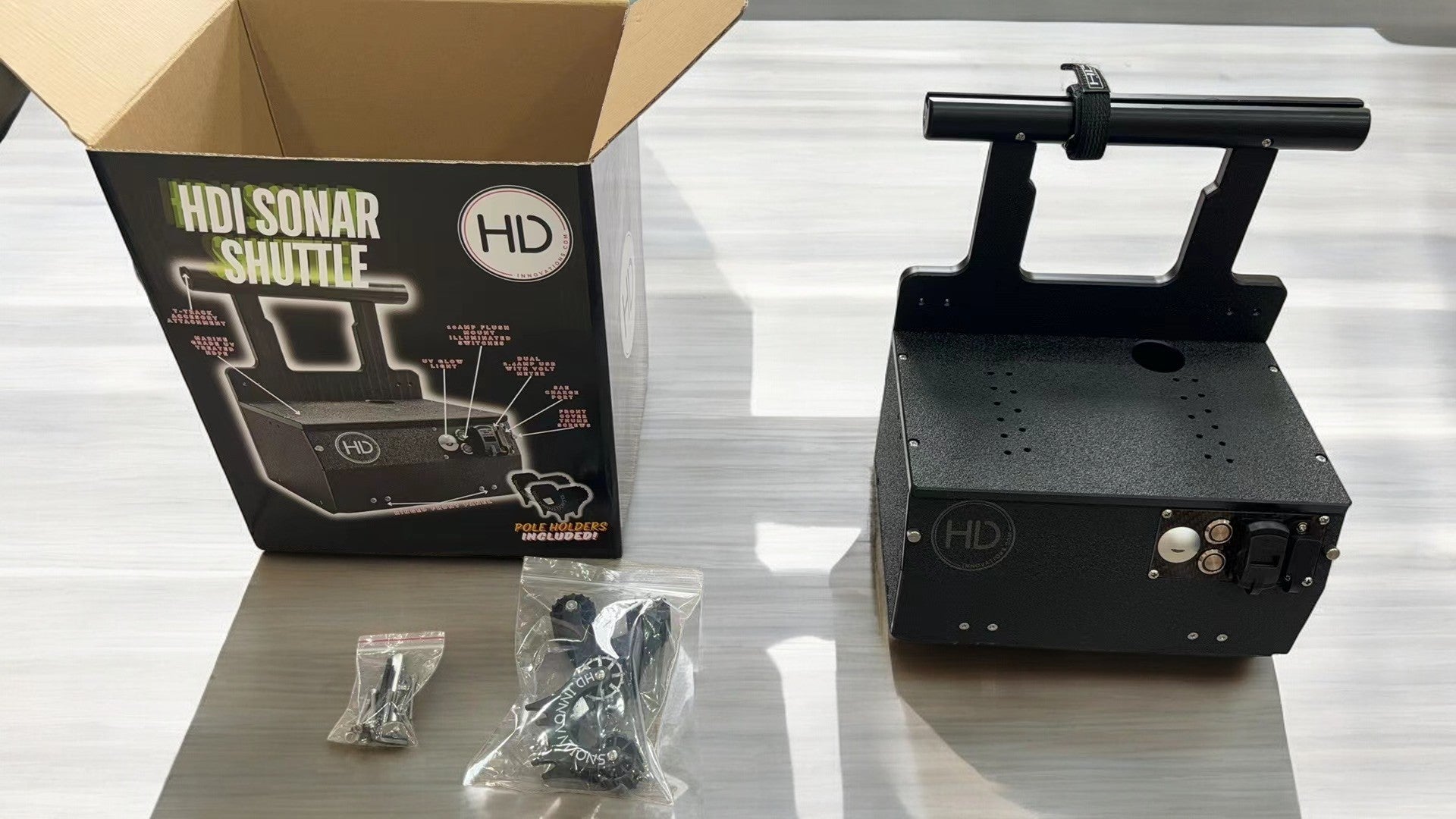

  • HDI Sonar Shuttle with pre-wired switch panel, fully assembled and professionally wired with all included connections
  • 10A illuminated flush-mount switches
  • Dual 2.4A waterproof USB ports
  • SAE battery charging port

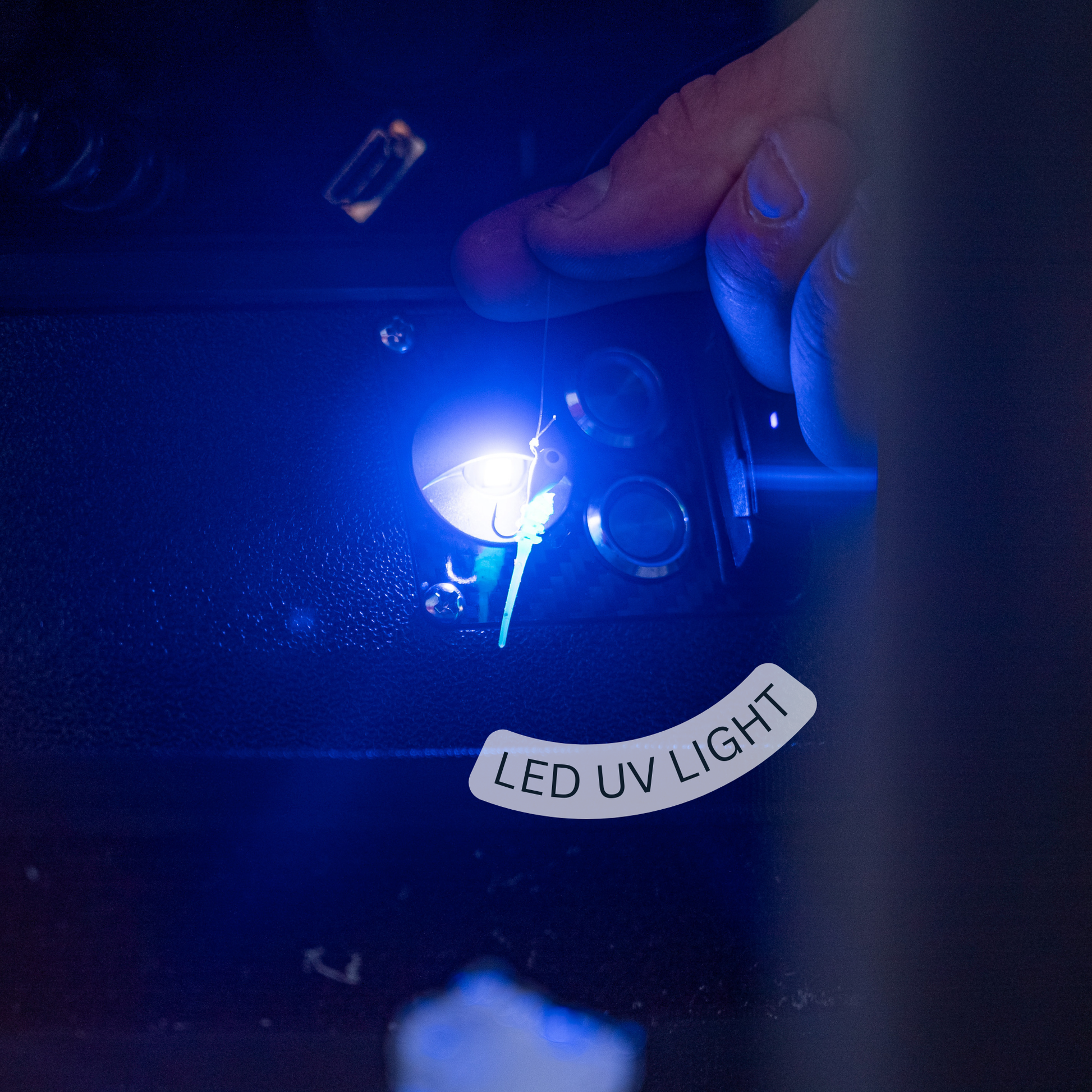

  • UV-blue LED light

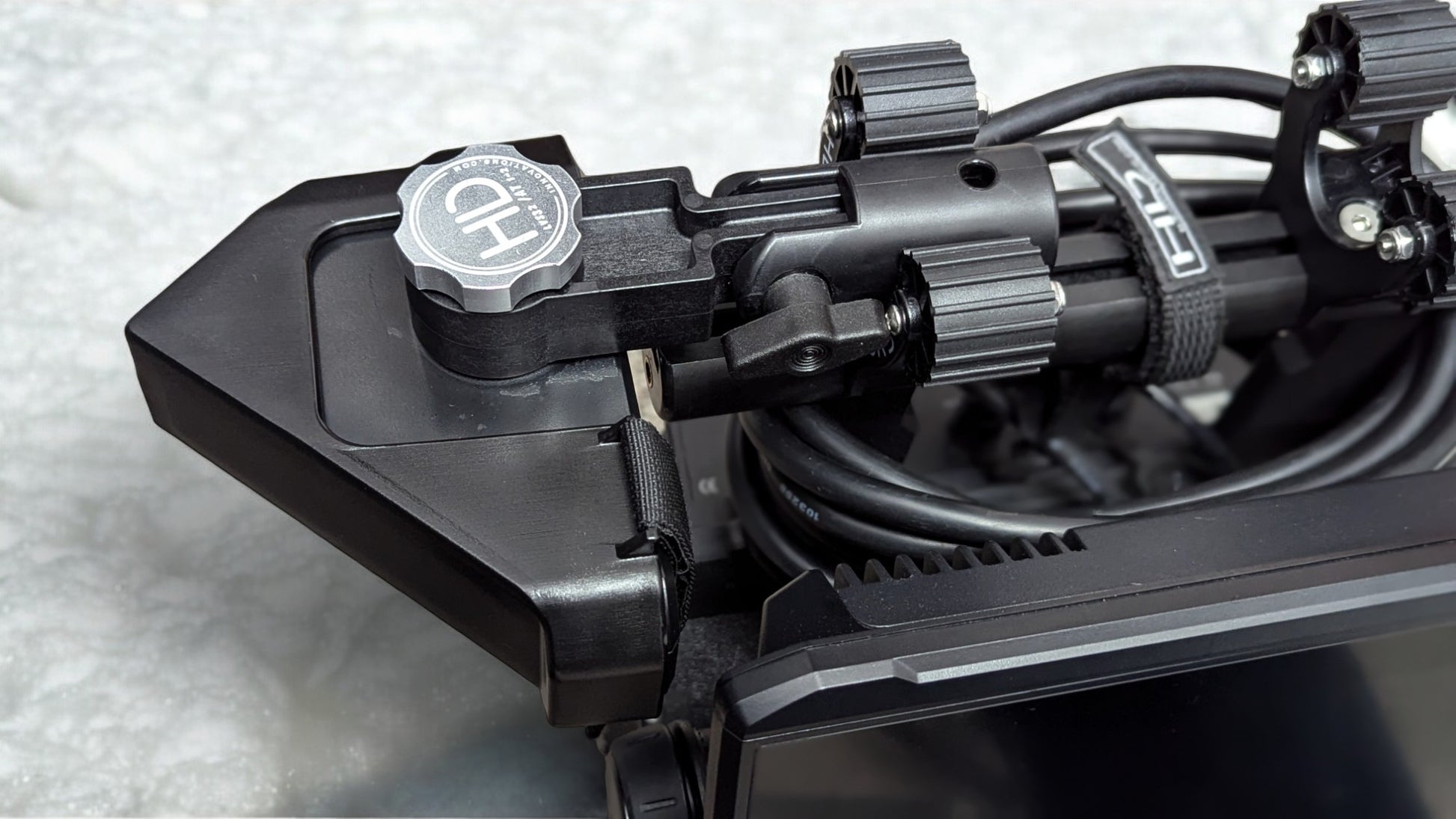

  • Integrated T-Track with (2) HDI wheeled pole holders
  • Hardware for included pole holders

Compatibility

SONAR COMPATIBILITY

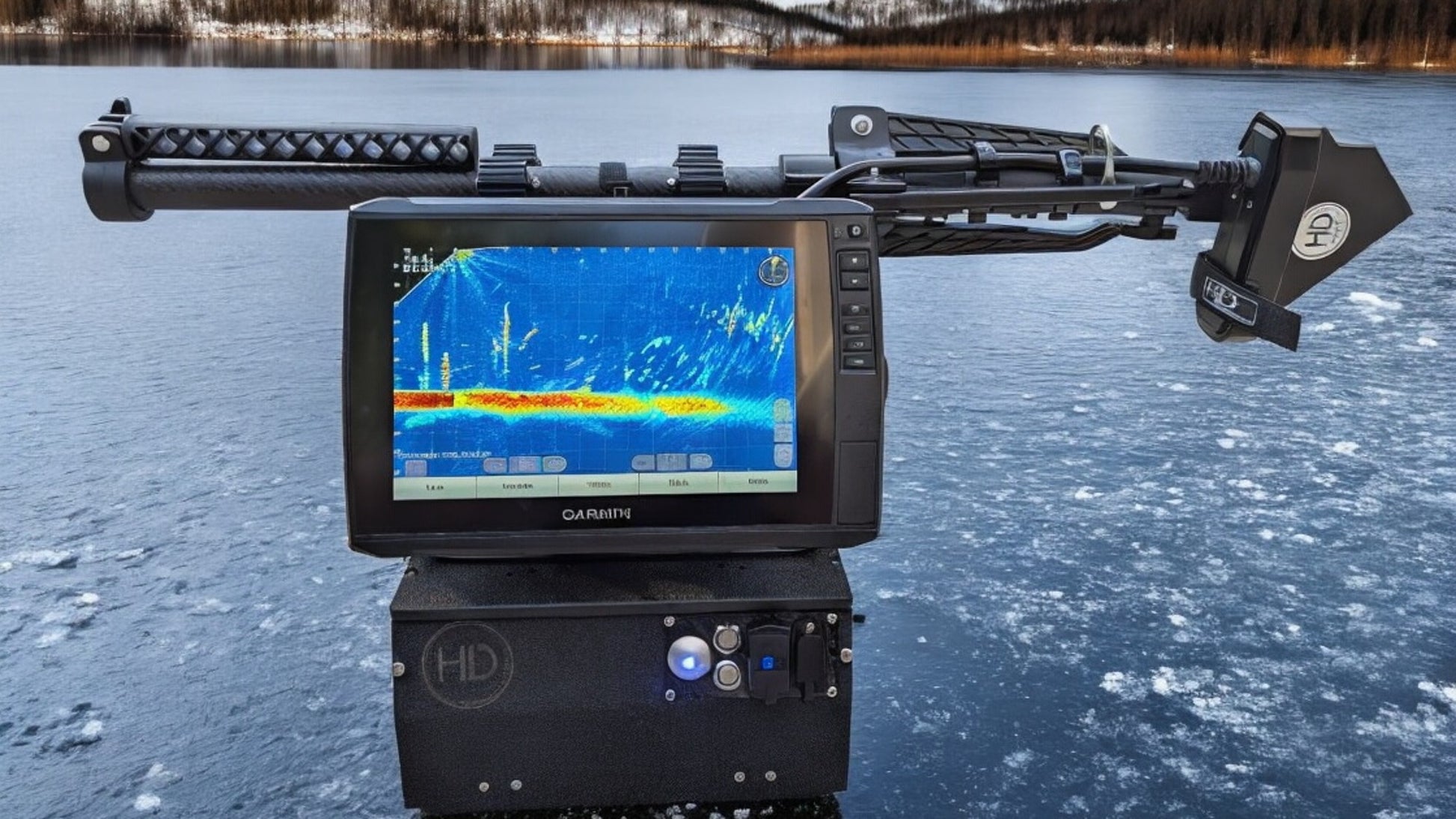

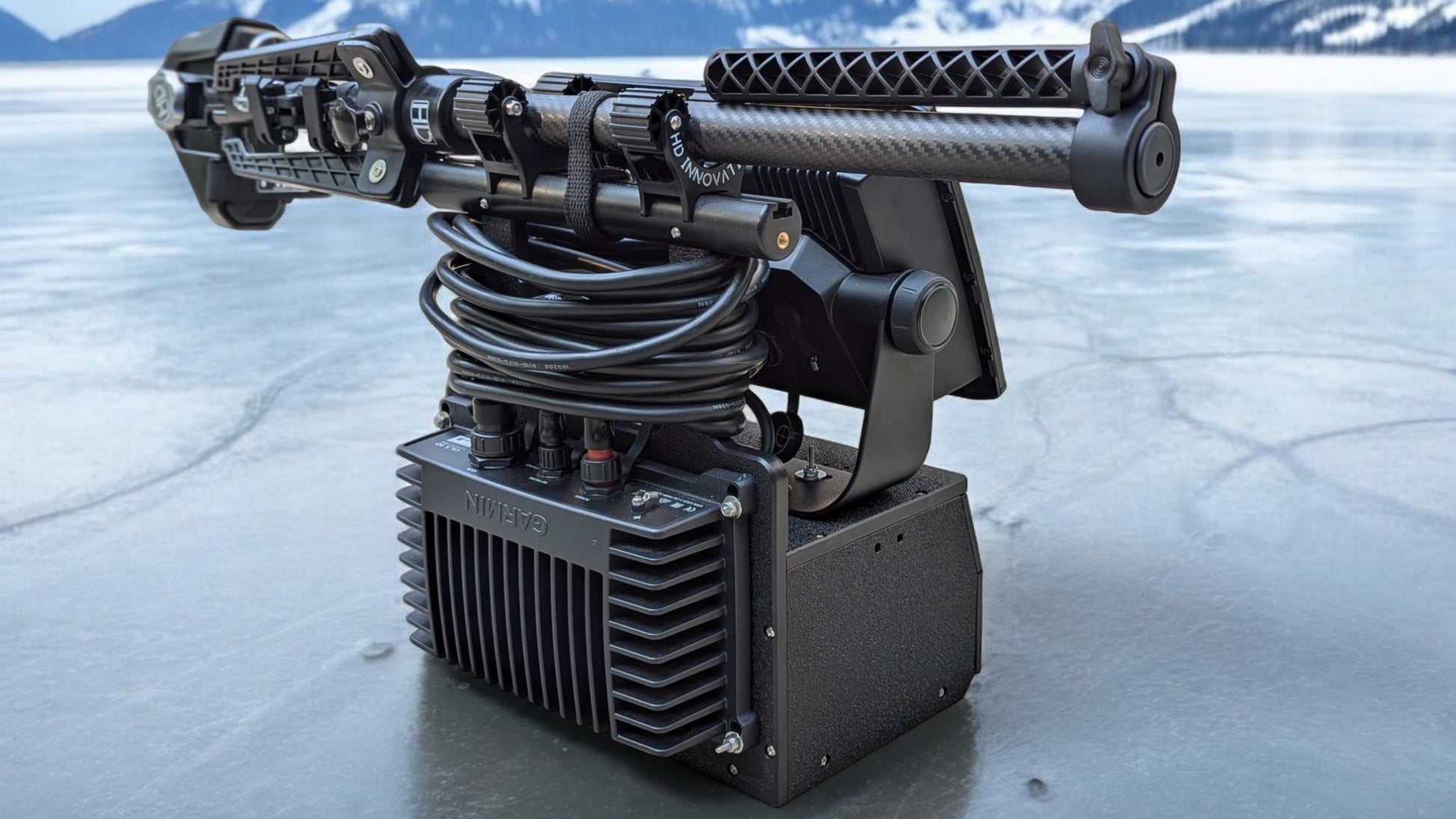

Compatible with forward-facing sonar systems including LiveScope, ActiveTarget, Mega Live, and more. Supports 7"–13" screens from Garmin, Humminbird, Lowrance, and other major brands.

BATTERY COMPATIBILITY
- Amped — up to 52Ah*
- Norsk — up to 50Ah*
- Garmin — 16Ah, 20Ah, 23Ah
- Dakota — 10Ah
- Standard 9Ah and 12Ah lead-acid battery cases

NOT COMPATIBLE WITH
- Amped 30Ah Tall
- Dakota 25Ah
- Norsk and Garmin barrel-plug chargers without an SAE port
- Marcum battery chargers

Battery and charger not included.

Specifications

  • Construction: CNC-machined marine-grade HDPE
  • Switch Panel: 3K carbon-fiber panel
  • Switches: 10A illuminated flush-mount
  • USB Charging: 2 × 2.4A waterproof USB ports
  • SAE Charging: Front-mounted SAE battery charge port
  • Lighting: UV-blue LED light
  • Screen Compatibility: Includes mounting patterns to support screens between 7'' - 12" from Garmin, Humminbird, Lowrance and more.
  • Battery Tray: Max battery size is 150×99×131 mm, or 5 ⅞ × 3 ²⁹/₃₂ × 5 ⅛ in. (L×W×H)
  • Assembly: Fully wired and assembled

Options

A non-assembled HDI Sonar Shuttle version is available at a lower cost. This is the same shuttle, just shipped flat for customer assembly.
